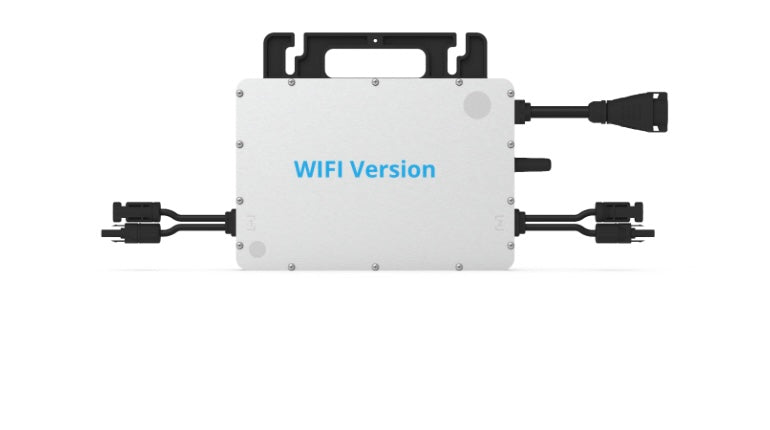

Hoymiles HMS-800 WiFi microinverter
Hoymiles HMS-800 WiFi microinverter
Low stock: 7 left
Couldn't load pickup availability
Hoymiles HMS-800 WiFi microinverter
*Price including 0% VAT for those entitled according to Section 12 Paragraph 3 UStG

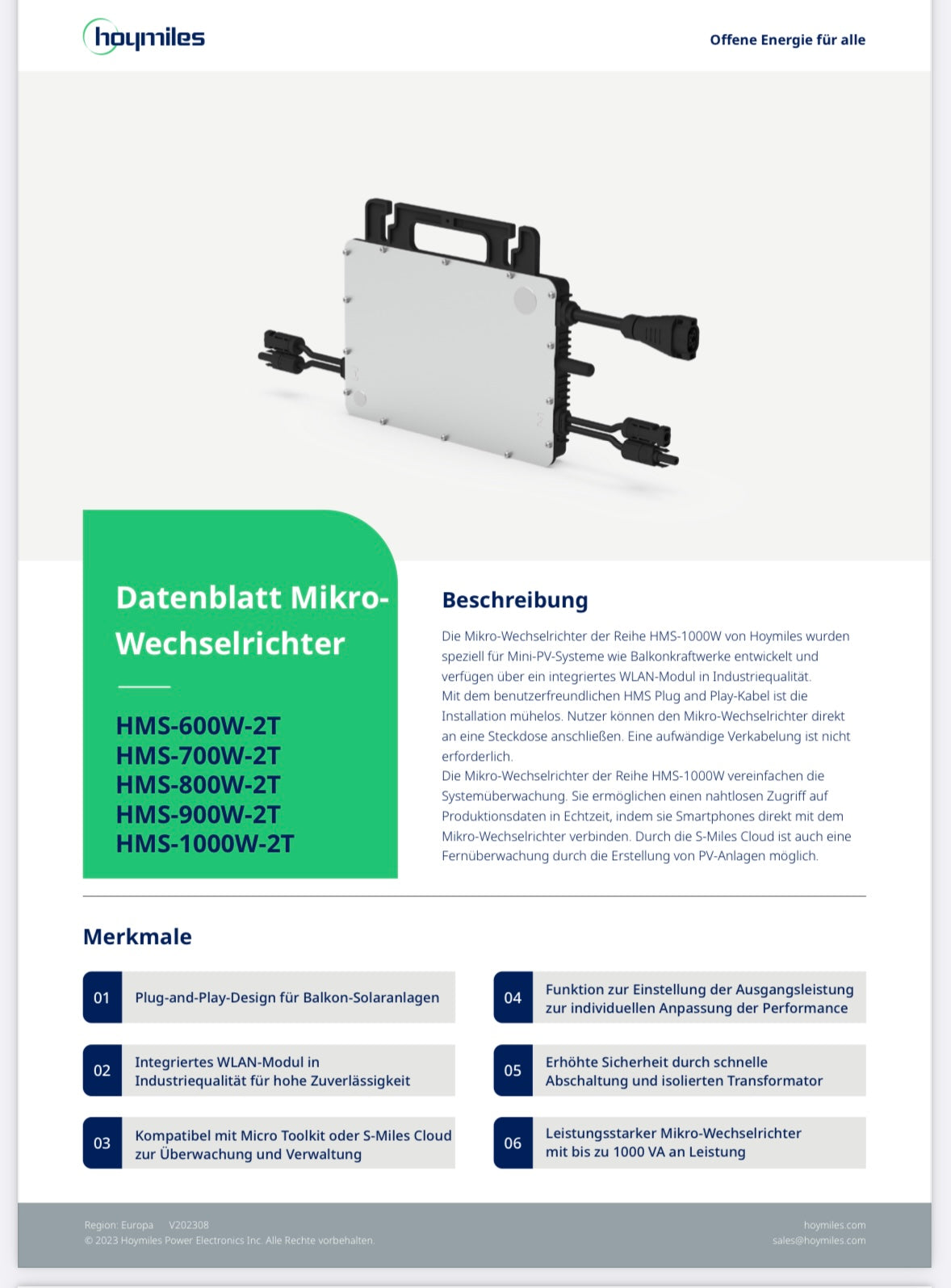

Hoymiles' HMS-800W series microinverters are specifically designed for mini-PV systems such as balcony power plants and feature an integrated industrial-grade Wi-Fi module.
With the user-friendly HMS Plug and Play cable, installation is effortless. Users can connect the microinverter directly to a power outlet. Complex wiring is not required.
The HMS-800W series microinverters simplify system monitoring. They enable seamless access to real-time production data by connecting smartphones directly to the microinverter. Remote monitoring is also possible through the creation of PV systems via the S-Miles Cloud.
Scope of delivery:
1x Hoymiles microinverter HMS-800 WiFi
HMS-800 Wifi has a 10-year manufacturer's warranty
Simple structure:
PV systems with Hoymiles microinverters are very easy to install. You can install a combination of different types of PV modules, in any orientation, and in any desired number (maximum number of devices in series: 7). There's no need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting rack or directly beneath the PV module. The PV module is connected to the microinverter directly on-site, eliminating the risk of human exposure to dangerously high DC voltage.

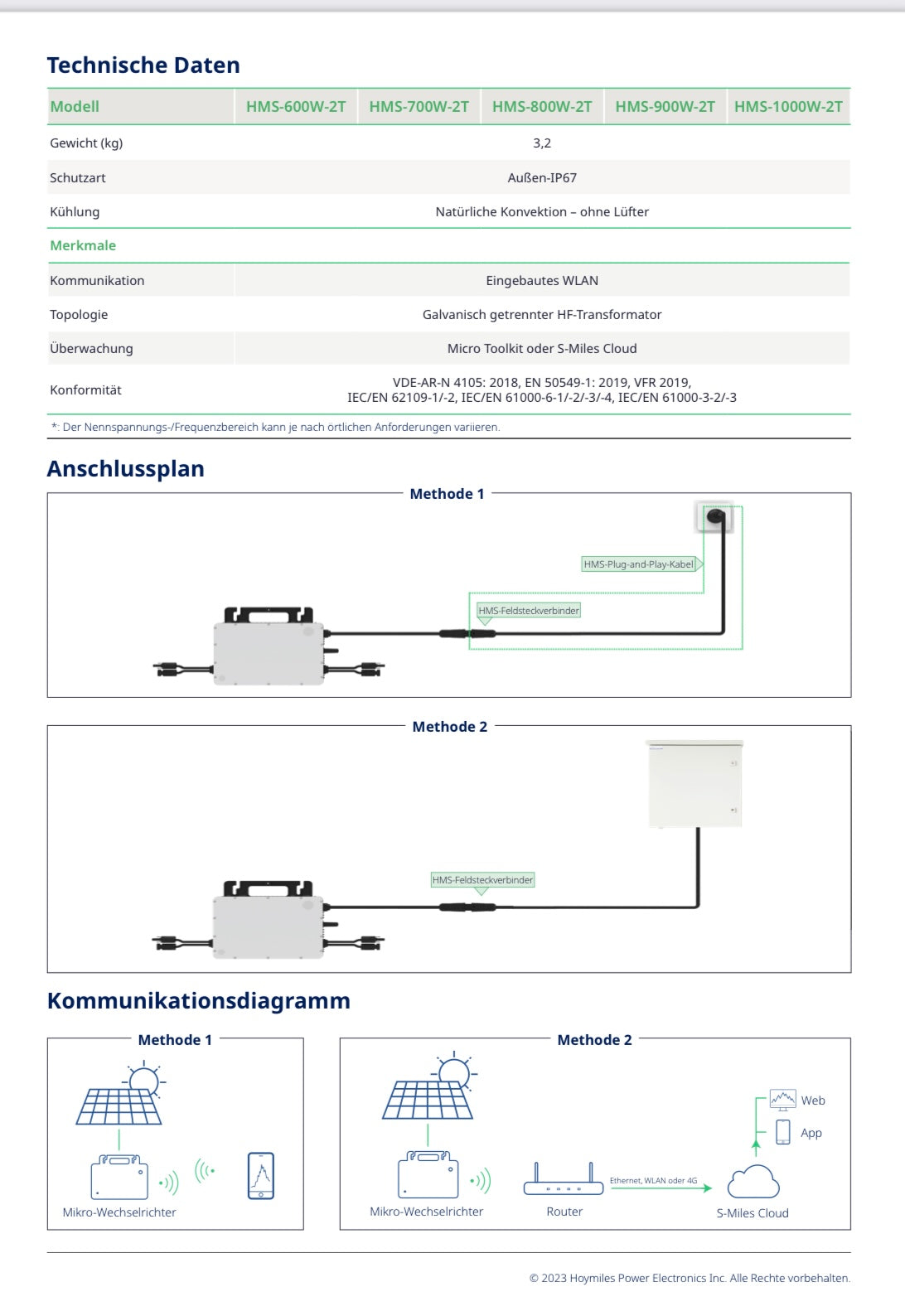

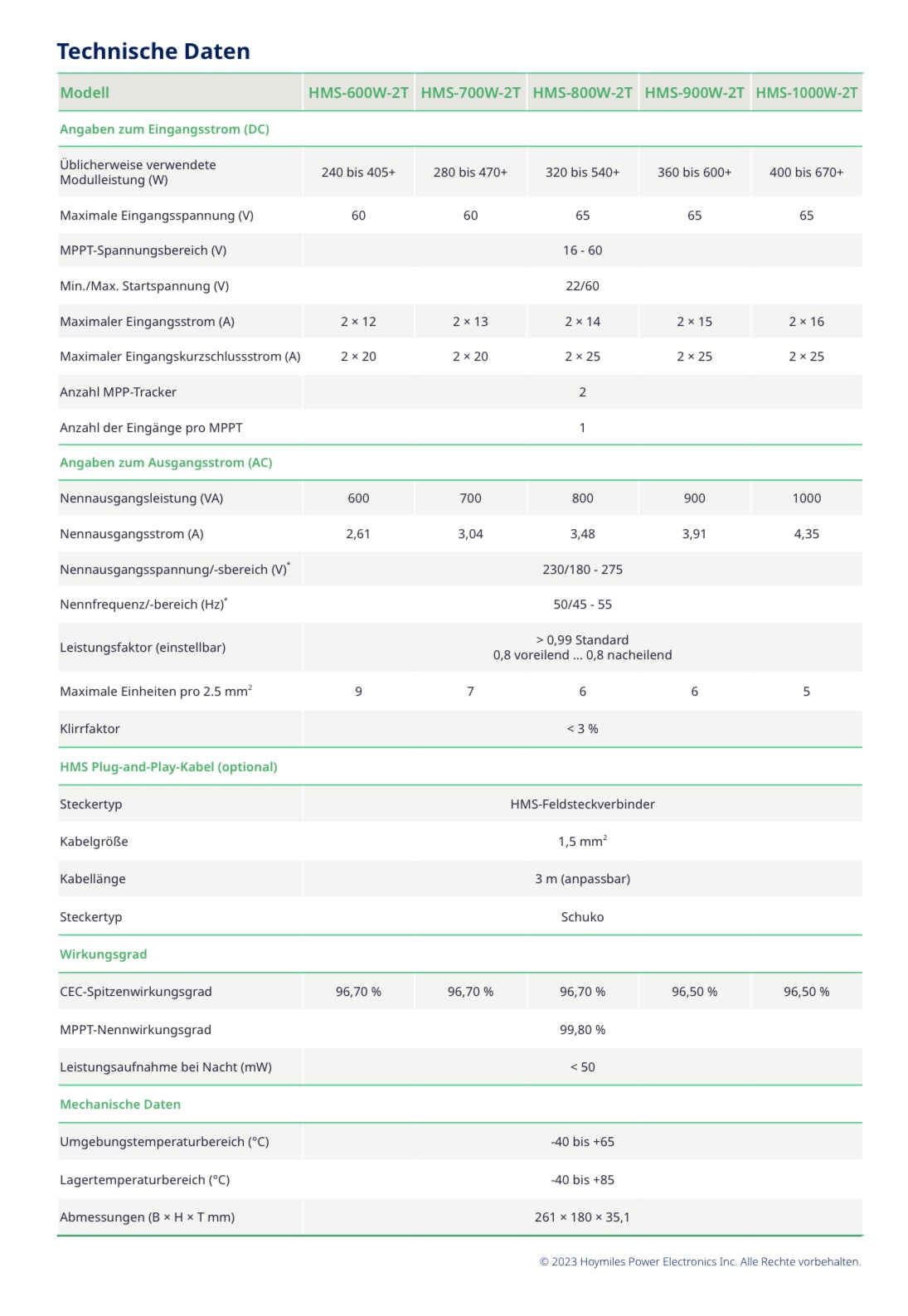

Technical data:
- Recommended module power: up to 540 W (per module)
- Peak power MPPT voltage range: 16~60 V
- Starting voltage: 22 V
- Battery voltage range: 16~60 V
- maximum input voltage: 65 V
- maximum input current: 2x 14 A
- Maximum input short-circuit current: 2x 25 A
- Rated output power: 800 VA
- Rated output current: 3.48 A at 230 V
- Nominal output voltage/range: 230 V / 180-275 V
- CEC-weighted efficiency: 96.70%
- Ambient temperature range: -40~+65 °C
- Dimensions (W x H x D): 261 x 180 x 35.1 mm
- Weight: 3.2 kg
- Housing rating: IP67
