Huawei

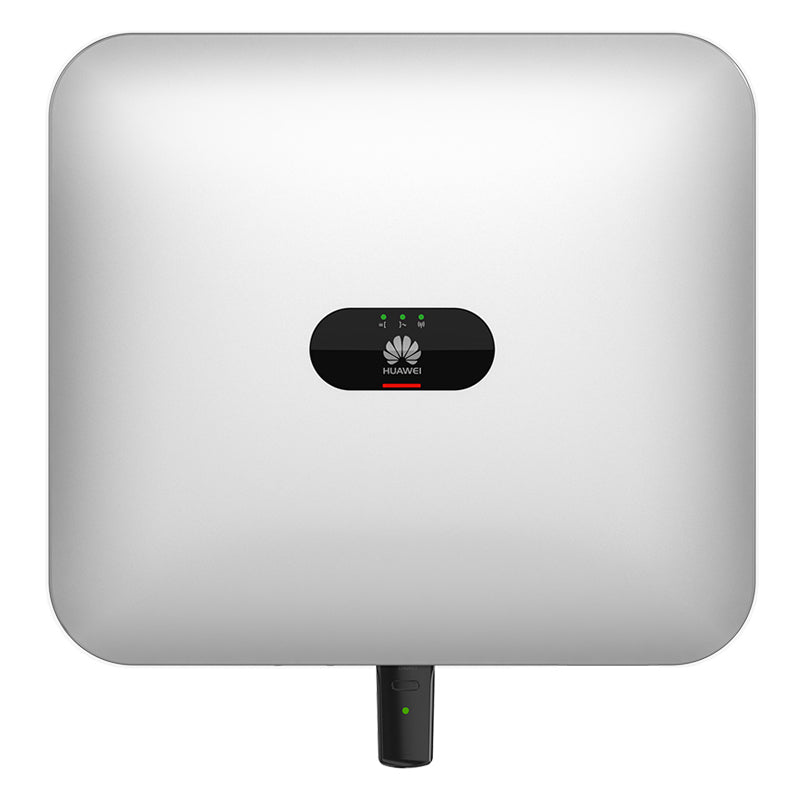

HUAWEI SUN2000 KTL-M1 Hybrid Inverter Series, 3.0 to 10.0 kW AC Power 3PH
HUAWEI SUN2000 KTL-M1 Hybrid Inverter Series, 3.0 to 10.0 kW AC Power 3PH
Low stock: 5 left
Couldn't load pickup availability
Available models: SUN2000-3KTL-M1, SUN2000-4KTL-M1, SUN2000-5KTL-M1, SUN2000-6KTL-M1, SUN2000-8KTL-M1 and SUN2000-10KTL-M1
Make your selection!
The Huawei 3-phase hybrid inverter series is the interface for the Huawei Smart Energy Center. The integrated 800V high-voltage battery connection allows the inverter to be expanded with a Huawei battery. The optional Huawei Smart Meter is connected via the integrated RS485 interface and provides information about household consumption and grid feed-in. This allows the inverter to implement dynamic power reduction. The Wi-Fi dongle is included and transmits the data to the free Huawei portal. Its compact dimensions and low weight of just 17 kg enable quick and easy installation.
- Maximum efficiency: 98.2%
- European efficiency: 96.7%
- 2 MPPTs
- Optimized AC connection for fast cabling
- IP65
- natural cooling
- Integrated surge protection for DC and AC
- Manufacturer's warranty: 10 years
- easy installation by 1 person
Grid-connected inverter: DC/AC
WiFi: Yes
AC output power: up to 10,000 W
Max. input voltage: 1,100 V
Max. input current: 13.5 A
3-phase grid feed-in: Yes
Number of MPP trackers: 2
Protection class (IP): IP65
Efficiency: 98.1%
Weight: 17 kg
Width: 470 mm
Height: 525 mm
Depth: 146.5 mm
Grid monitoring: 3-phase

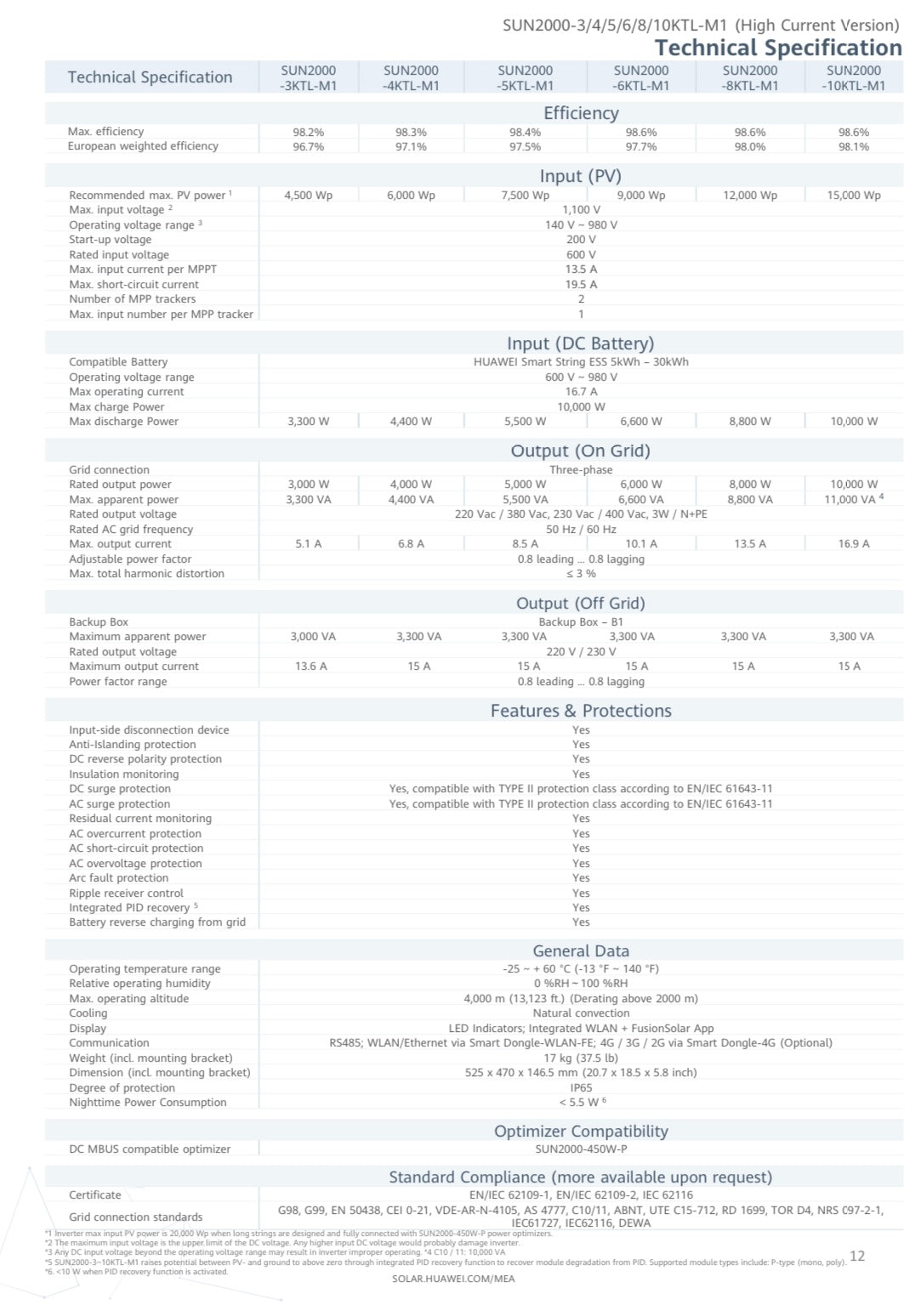

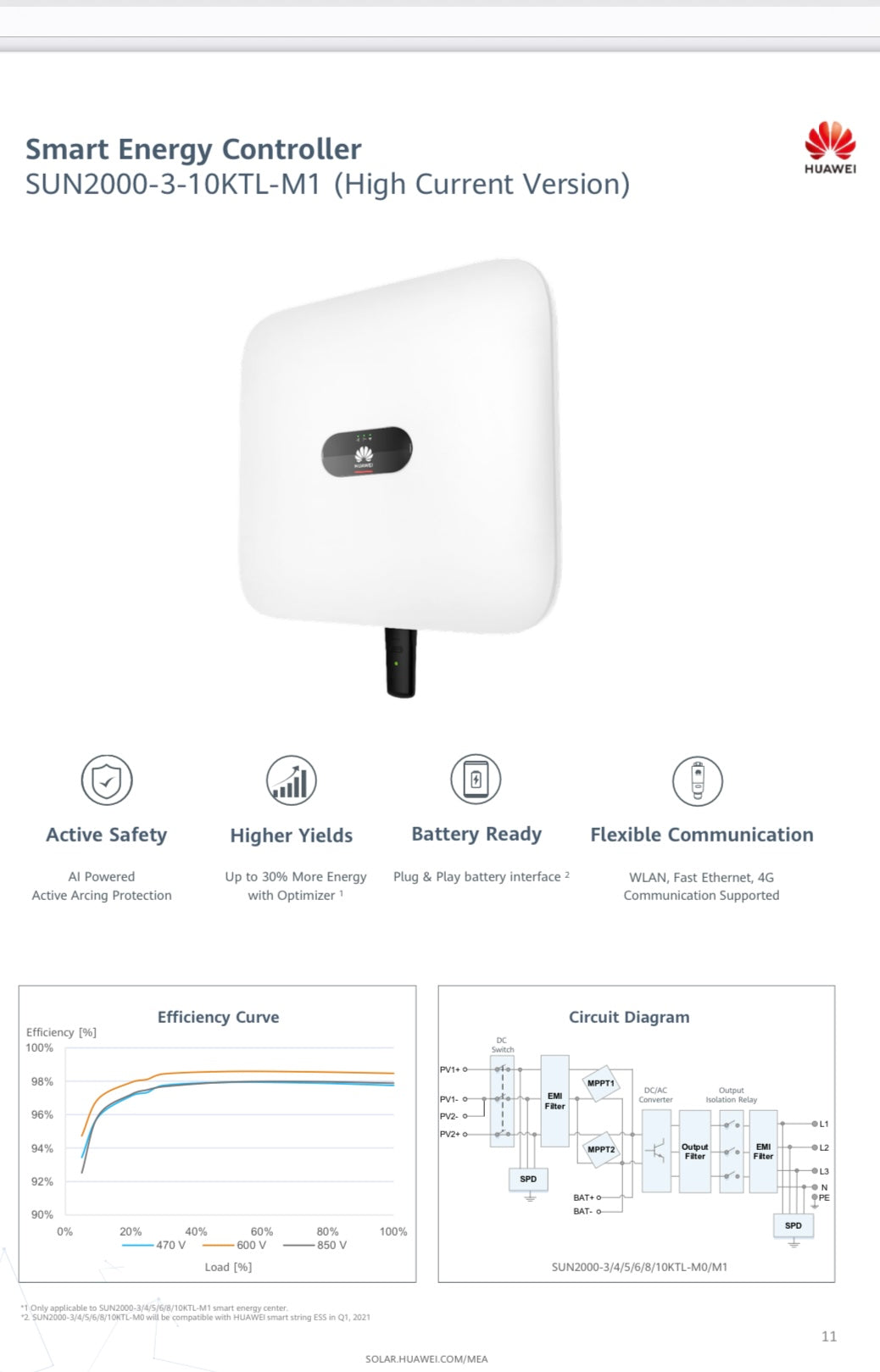

For further information please refer to the data sheet!
You can find more information about the Huawei Hybrid Inverter here.
