• HUAWEI SUN2000 KTL-M3 Wechselrichter Serie, 30.0 bis 50.0 kW, 3-phasig
1 5

Huawei

HUAWEI SUN2000 KTL-M3 inverter series, 30.0 to 50.0 kW, 3-phase

HUAWEI SUN2000 KTL-M3 inverter series, 30.0 to 50.0 kW, 3-phase

€2.579,00 EUR
€2.579,00 EUR
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

version

AWEI SUN2000-KTL-M3 inverter, 30.0 to 50.0 kW

The new small commercial inverter Hammer from Shenzhen - the M3 series comes with many advantages.
As usual from Huawei, there are enough MPP trackers here, 4 in total with 8 inputs each with 13 amps of nominal current and 20 amps of short-circuit current.
The devices are compact and weigh just over 43 kg.
Also well-known is the highly robust, fanless design with a sophisticated heat sink that's resistant to failure. The same concept eliminates string fuses and instead electronically monitors each string.
New features include PID recovery for long-term value retention. Arc detection is also available, and when combined with compatible optimization, this is even possible at the module level. If the system is fully optimized, the 0V safety shutdown is also included free of charge.

  • Max. DC voltage: 1100 V
  • Max. AC apparent power: 55,000 VA
  • 4 MPPT for versatile adaptation to different layouts
  • Intelligent 8-string monitoring and fast troubleshooting
  • Max. efficiency 98.5%, EU efficiency 98.0%


Please note the different variants! Power outputs from 30 to 50 kW are available!

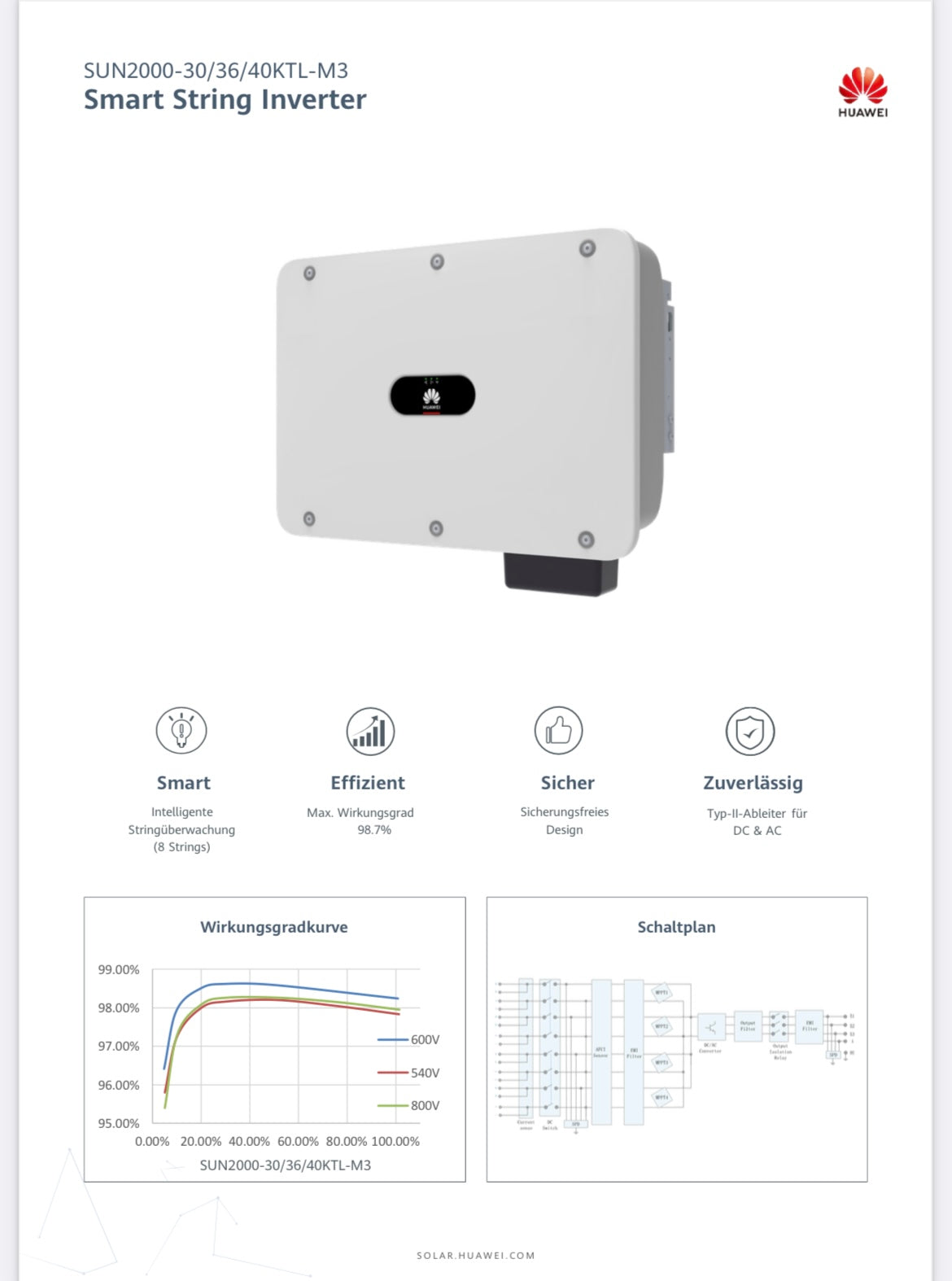

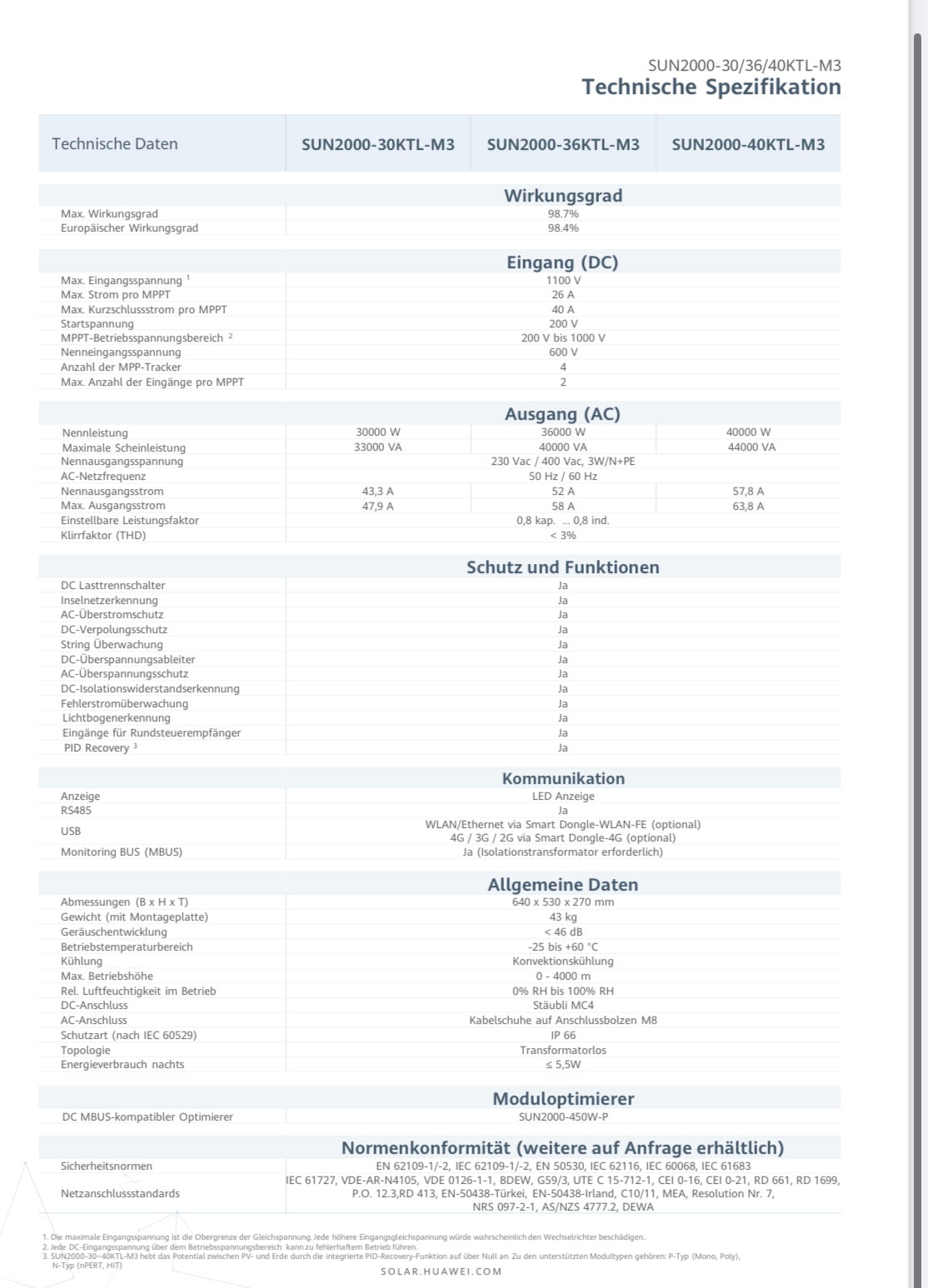

For further information please refer to the data sheet!

Further information about the manufacturer Huawei can be found here.
