PV complete package Huawei 8 KWp flat roof installation Trina Solar 450W modules (+ storage 5-15 kWh)

PV complete package Huawei 8 KWp flat roof installation Trina Solar 450W modules (+ storage 5-15 kWh)

* Price including 0% VAT for those entitled according to Section 12 Paragraph 3 UStG

Our 8 kWp complete package for flat roof installation includes the latest and most efficient photovoltaic components from the areas of solar modules, inverters, and storage, enabling a future-proof energy supply for your household. The Huawei SUN2000-8KTL-M1 hybrid inverter impresses with its high efficiency and durable materials, supported by modern AI security features.

Trina Solar's PV modules, featuring state-of-the-art cell technology, maximize energy yield. The modular LUNA2000 storage system offers flexible energy management and allows the use of excess solar power even after sunset, creating additional independence from current and future electricity prices. An ideal combination for a sustainable and high-performance solar system.

The complete package also includes the necessary mounting material and solar cables for your system (flat roof installation).

1. Solar modules / inverters / storage

• 18 x solar modules from the brand manufacturer Trina Solar , a 450W
• 1x hybrid inverter Huawei SUN 2000 (8-KTL-M1)
• 1x Huawei LUNA2000-5KW-C0 Power Unit
• 1x Huawei LUNA2000-5E0 (5-10-15 kWh per selection)
• 1x Huawei WLAN/LAN dongle
• 1x Huawei Smart Power DTSU666-H 100A
• 1x 100m solar cable (6 mm²)
• 4x Stäubli MC4 plug/socket

The solar modules: Trina Solar 450W, type: NEG9RC.28  450Wp (Black Frame)

450 W peak power

22.0% module efficiency

5,400 Pa snow load and 4,000 Pa wind load

25-year product warranty and 30-year performance warranty

N-type technology

high compatibility with inverters, optimizers and mounting systems

easy handling due to perfect size and low weight

Technical data

Cell type: Monocrystalline

Cell arrangement: 144 cells

Module dimensions (LxWxH): 1762 x 1134 x 30 mm

Weight: 21 kg

Glass: 1.6 mm, highly transparent, anti-reflective coated heat-tempered glass

Back: 1.6 mm, heat-tempered glass

Frame: 30 mm anodized aluminum alloy, black

Junction box: IP 68

Connector: TS4 / MC4 EVO2

The hybrid inverter: Huawei SUN2000-8KTL-M1

lightweight and compact hybrid device

very high efficiency

AI-supported arc protection

very durable components

Setup completely via app

prepared for additional battery charging via AC power sources

Remote maintenance and automatic updates

User-friendly device for beginners and professionals in the photovoltaic sector

10-year product warranty

Technical data

High efficiency of up to 98.6%

IP 65 waterproof

maximum PV power: 12,000 Wp

Fanless through natural convection

Web Interface

LED display

Dimensions: 525x470x146.5 mm

Weight: approx. 17 kg

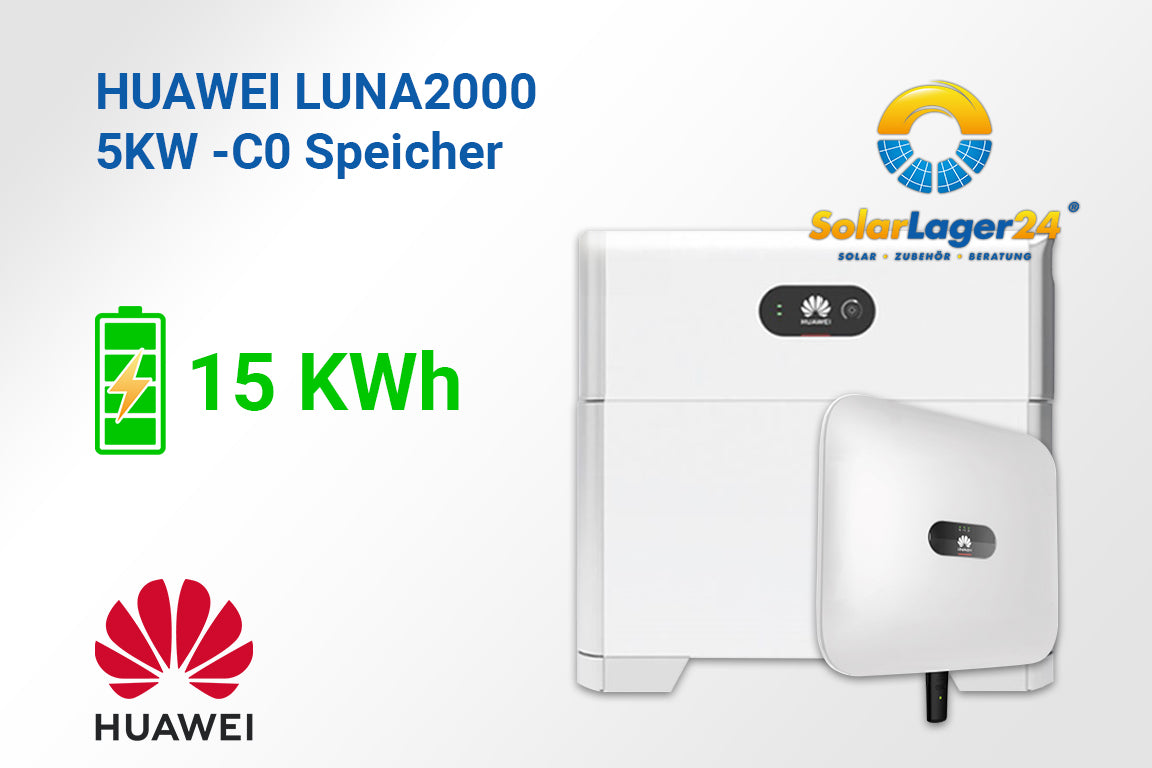

The storage: Huawei LUNA2000 Battery Module 5kWh

fully modular battery/storage

Battery modules with energy optimizer

flexible and easy stand or wall mounting possible

quick setup via APP

10-year manufacturer's warranty

Technical data

Modular design (5 kWh)

Can be combined with Huawei hybrid inverters

multi-level security concept

Can be retrofitted at any time, plug and play

for indoor and outdoor installation

quick commissioning

Charging optimization

Lithium iron phosphate cell (LiFePo4)

2. Mounting material for substructure flat roof

We customize the material to suit your planned module arrangement (1, 2, or multiple rows). Modules are mounted "parallel to the roof."

• Mounting rail system Schletter a 4.75m

• Mounting rail system Schletter in other lengths if necessary to supplement
• Connector / rail connector for mounting rail

• Drilling screws M6x25 (for fixing the connector in the mounting rail)
• Module holder in the appropriate number (center clamp, black)
• Module holder in the appropriate number (end clamp, black)

• Flat roof fastenings for M8 screw connection
• End caps for your profile rails
• 100 meters of solar cable (6mm²)
• Stäubli MC4 plug/socket

If you would like to customize your offer (modules, inverters, etc.), please feel free to contact us!
