SOLAR SYSTEM 1760W Trina Solar double glass bifacial

SOLAR SYSTEM 1760W Trina Solar double glass bifacial

The stated price (including 0% VAT)

The set consists of:

• 4x bifacial solar modules Trina Solar a 440 Watt double glass,
• 1x Growatt inverter, type: MIC 1500TL-X
• 1x Growatt WiFi stick
• 2x solar extension cables (6mm²) of 10 meters each

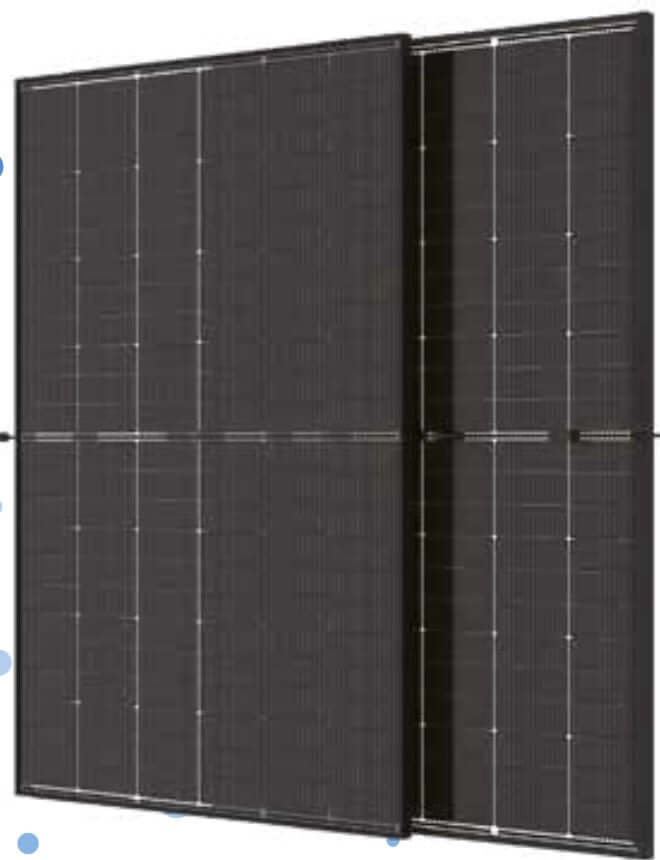

The solar modules:

Trina Solar Type: TSM-440-NEG9RC.27

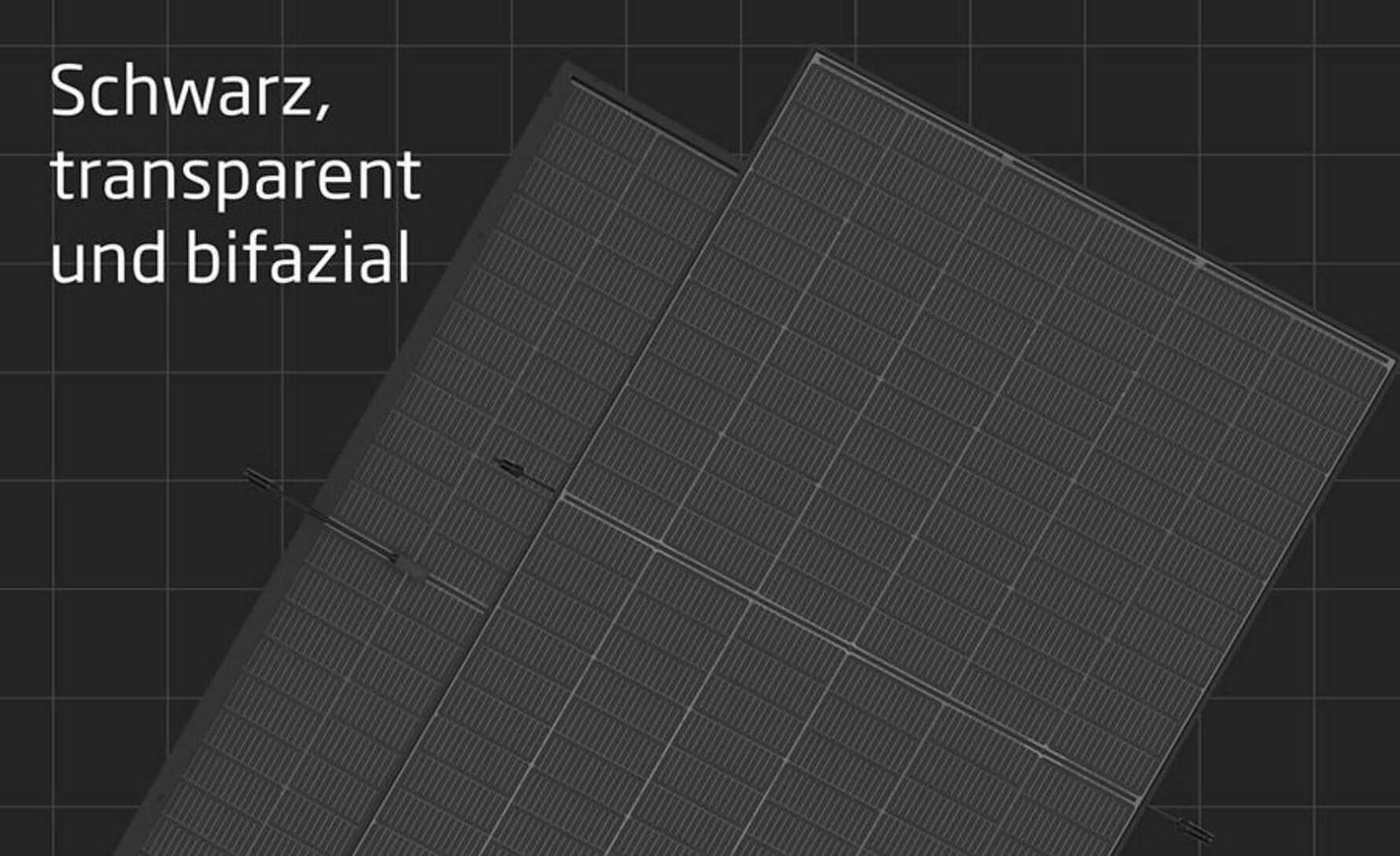

The Trina Solar NEG9RC.27 Vertex S+ is a high-performance solar module for residential and commercial rooftop systems. It features N-type i-TOPCon monocrystalline cell technology and is characterized by its enhanced product performance and attractive design.

The module offers a peak power of up to 440 W and a module efficiency of 22.0% thanks to its high-density cell interconnection technology. N-type technology ensures low degradation of only 1% in the first year and 0.4% in years 2-30, ensuring long-term performance reliability.

The Trina Solar NEG9RC.27 Vertex S+ module is highly reliable and robust. It has been tested and meets a snow load of 5.4 kPa and a wind load of 4 kPa, making it ideal for a variety of weather conditions.

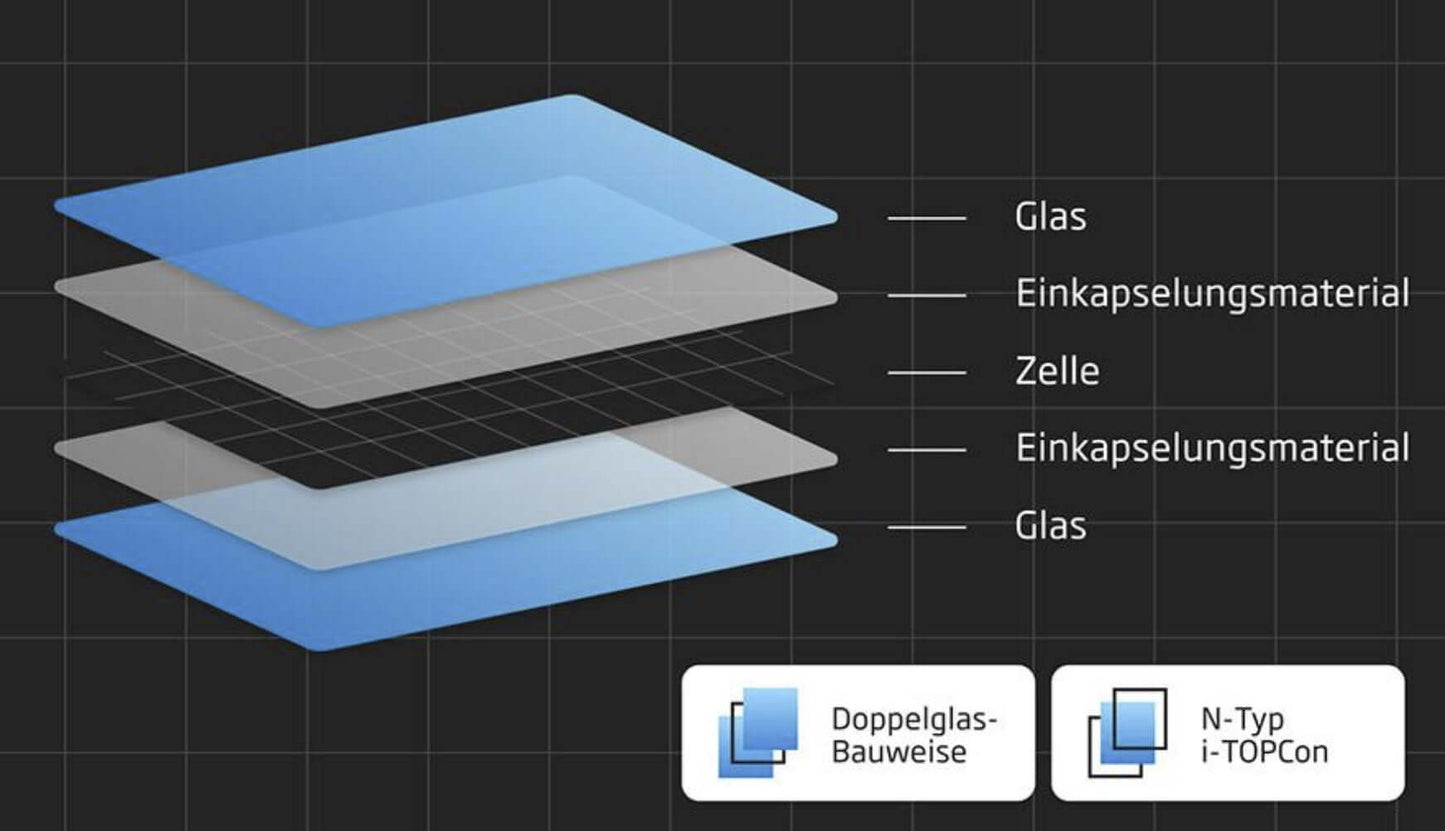

The module features a double-glazed design that enhances durability, fire resistance, performance, and recyclability. The front panel is made of 1.6 mm thick, highly transparent, anti-reflective, heat-treated glass. The back panel is also made of heat-treated glass with a white print. The sturdy anodized black aluminum frame ensures a stable structure and easy installation.

Trina Solar provides a 25-year product warranty and a 30-year linear performance warranty

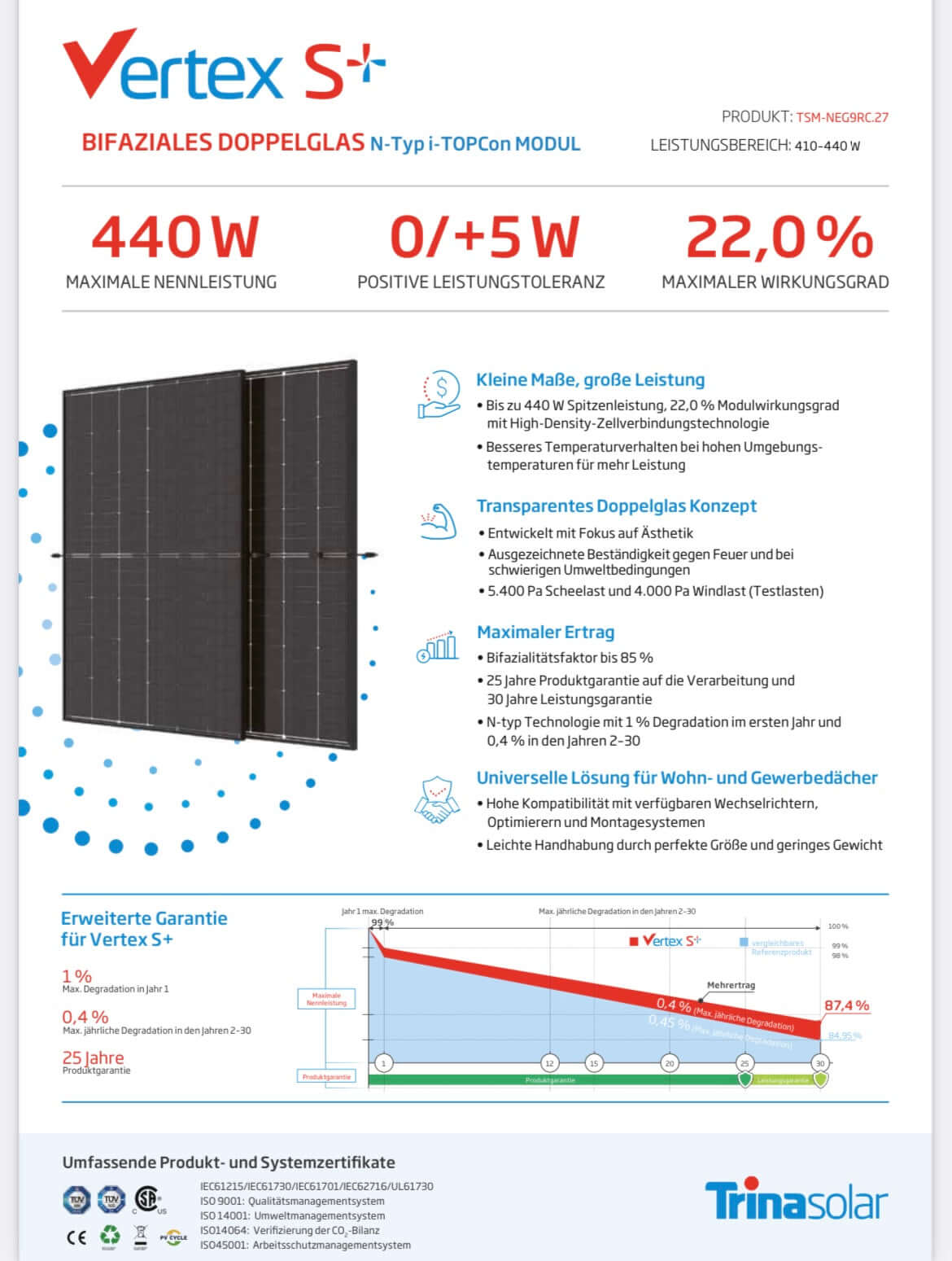

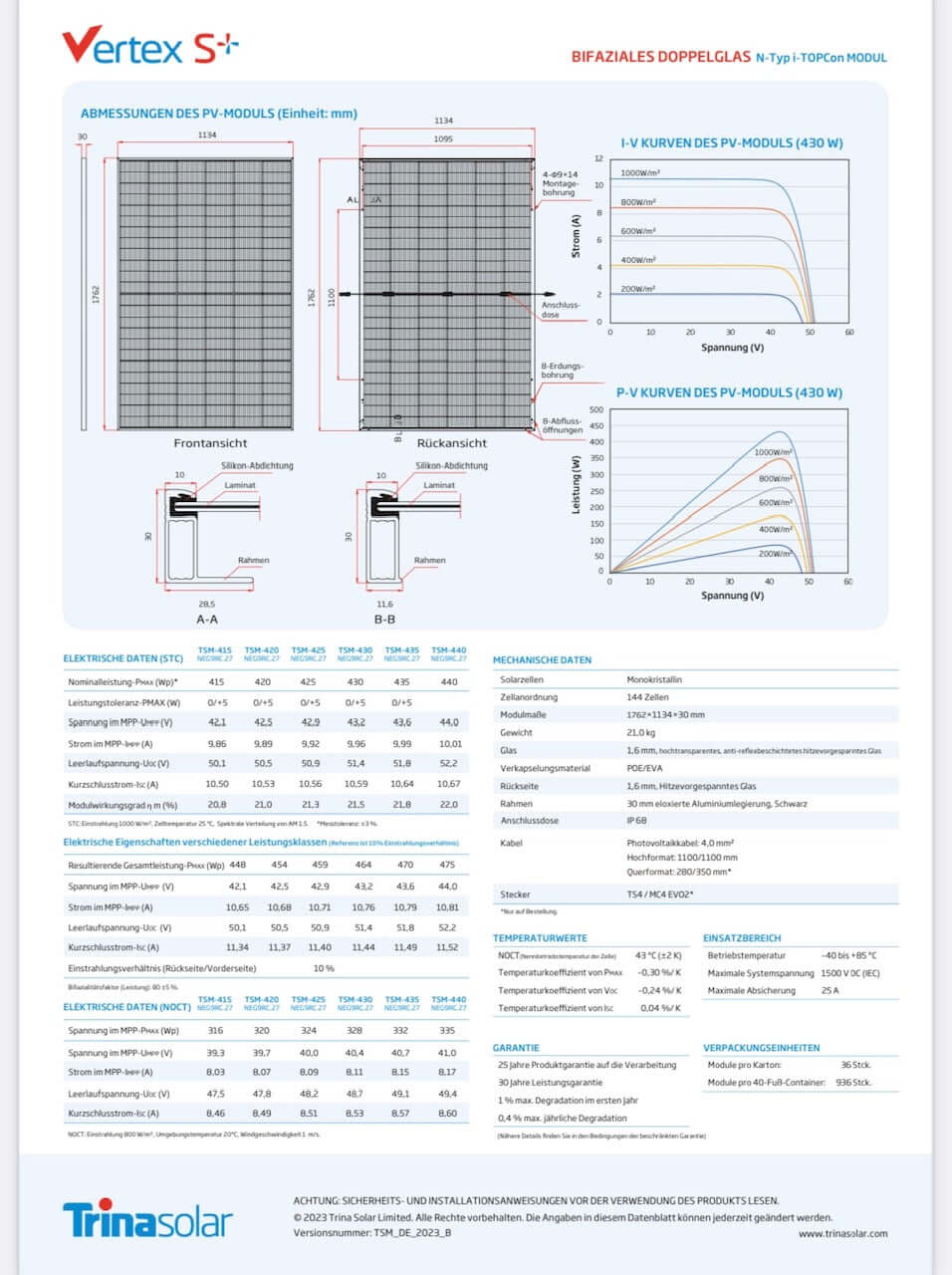

Technical data (see data sheet):

Type: TSM-440-NEG9RC.27-MC4EVO2 (Claer Black)

Dimensions (H x W x D) in mm: 1762 x 1134 x 30

Weight per piece in kg: approx. 21.0
Efficiency: 22.0%
Frame: black
Product warranty: 25 years
Linear performance guarantee: 30 years

Maximum power per module: 440 watts
Open circuit voltage: 52.20 volts
Max. voltage MPP: 44.00 V
Current at max. power MPP: 10.01 A
Short-circuit current: 10.67 A
Module connector: Connection cable TS4 / MC4 EVO2
Max. system voltage: 1500 V

Please note the technical data on the data sheet!

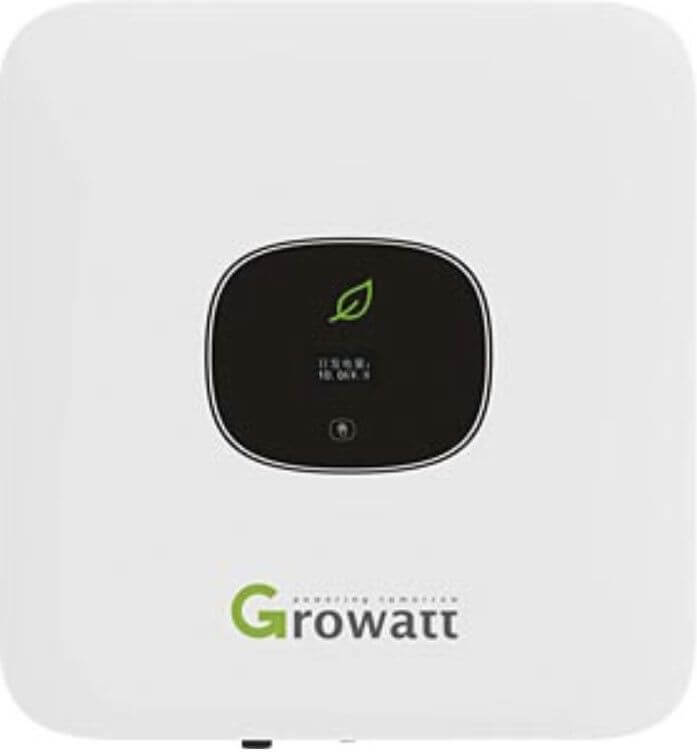

The inverter:

The Growatt MIC 1500TL-X is a lightweight and compact residential inverter. It features a maximum DC voltage of 500 V, a starting voltage of 50 V, and a nominal voltage of 250 V. It features an MPPT with a maximum input of 13 A. Safety is an important aspect, achieved through several features. These include a DC switch, surge protection, and an AFCI option.

The Growatt features a built-in monitoring system that allows for quick and effective monitoring of the PV system. A direct connection to the inverter is established using Wi-Fi, LAN, or a Growatt Shinelink.

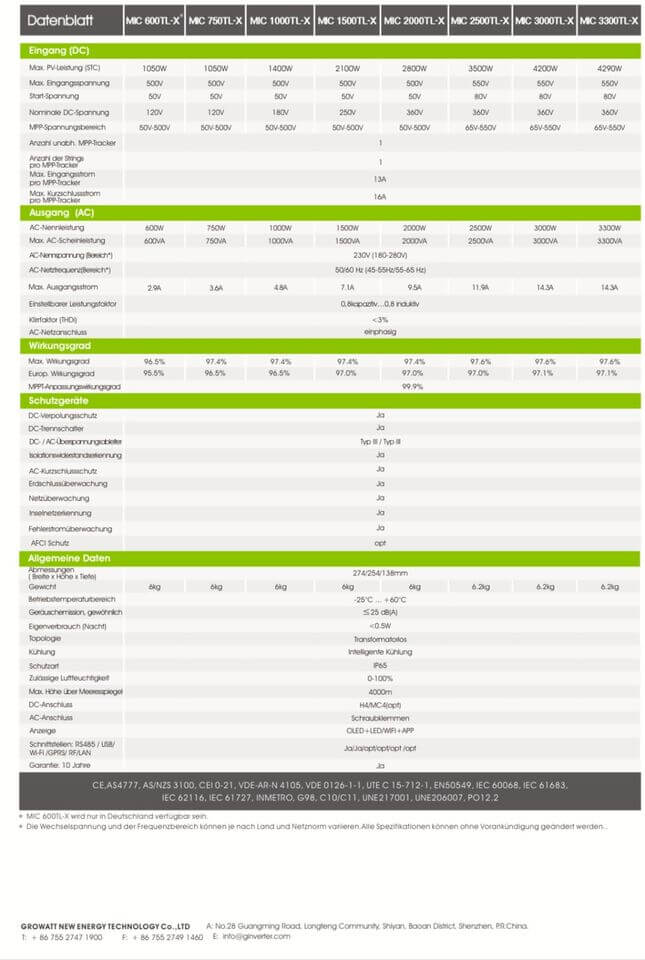

Max. DC input power (watts): 2100
Number of MPPTs: 1
Display: Yes

Manufacturer information for Trina Vertex S TSM-NEG9RC.27 can be found here .

Manufacturer information for Growatt MIC1500 can be found here .
