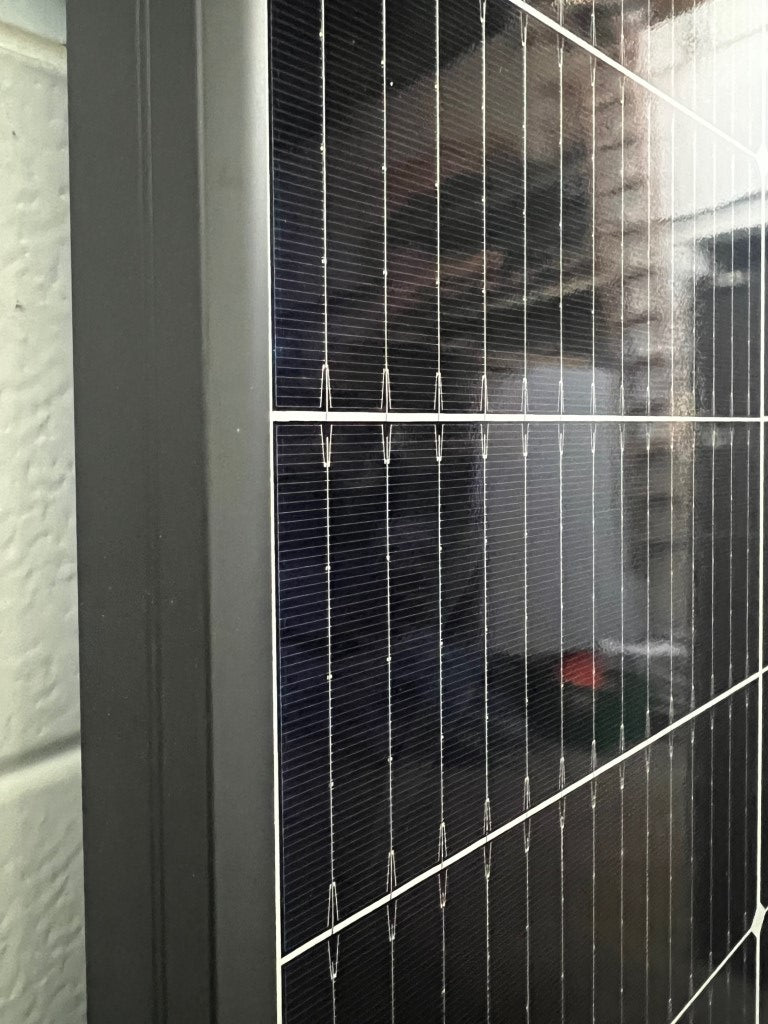

  • Nahaufnahme eines Trina Solar Dualglas-Solarmoduls mit schwarzem Rahmen.

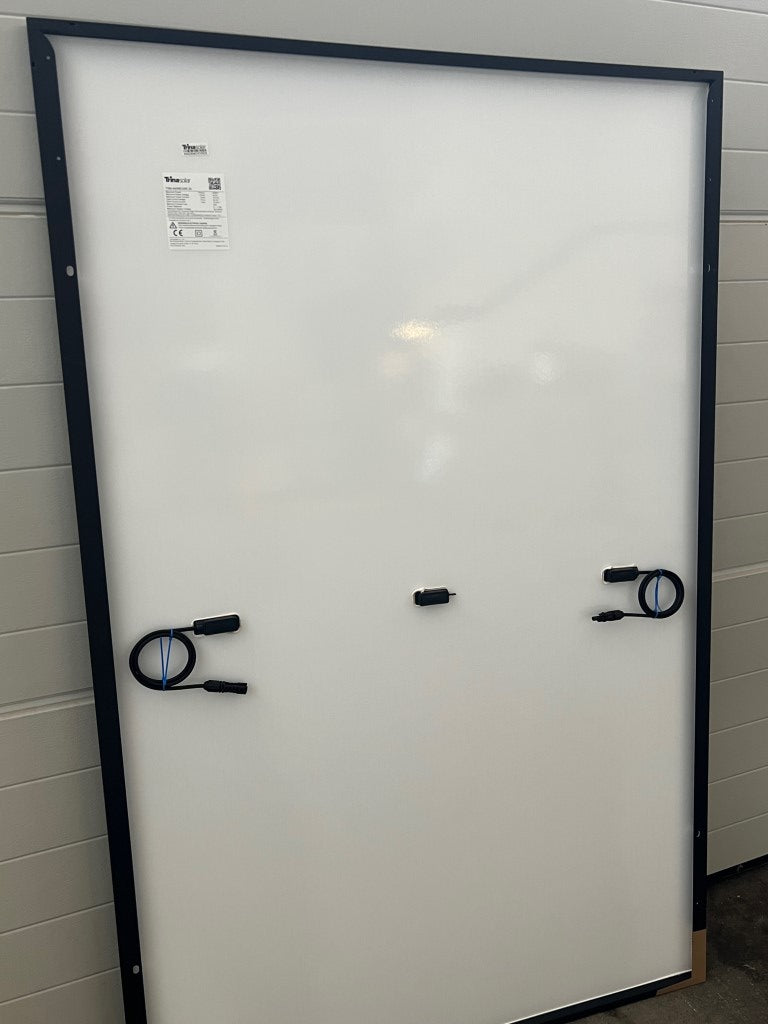

  • Solarmodul Trina Solar Doppelglas mit Anschlusskabeln, geeignet für Solaranlagen, weißes Design, 455W.
  • MC4-Verlängerungskabel für Solaranlage, geeignet für 1820W Trina Solar Systeme.

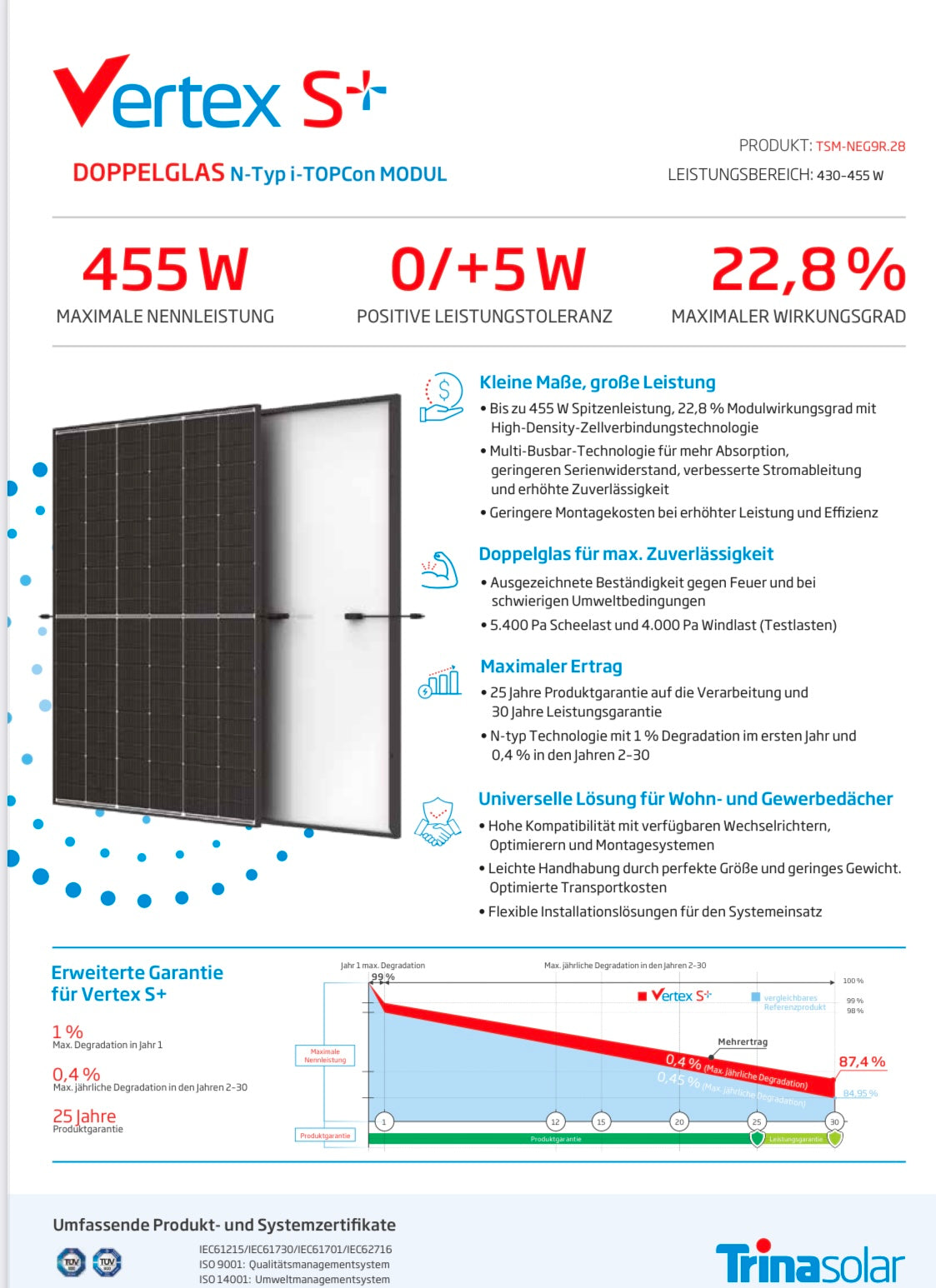

  • Datenblatt für Trina Solar Vertex S+ Doppelglas Modul, 455W, mit max. Effizienz von 22,8% und Garantieinformationen.

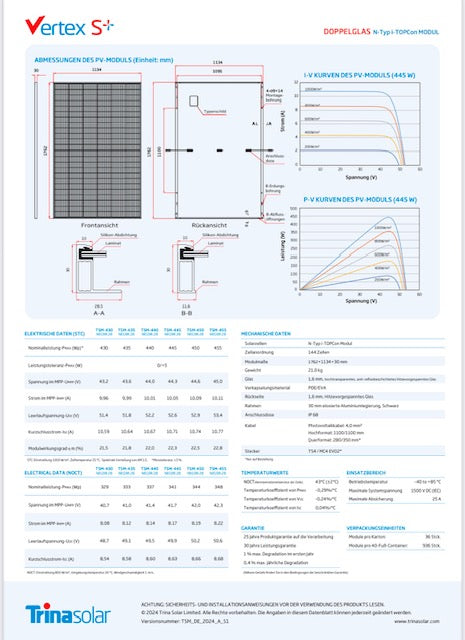

  • Technische Spezifikationen des Trina Solar Vertex S+ Doppelglas Solarmoduls 455W
  • Growatt MIC 1500TL-X Wechselrichter für Solaranlagen mit Display und grünem Logo.

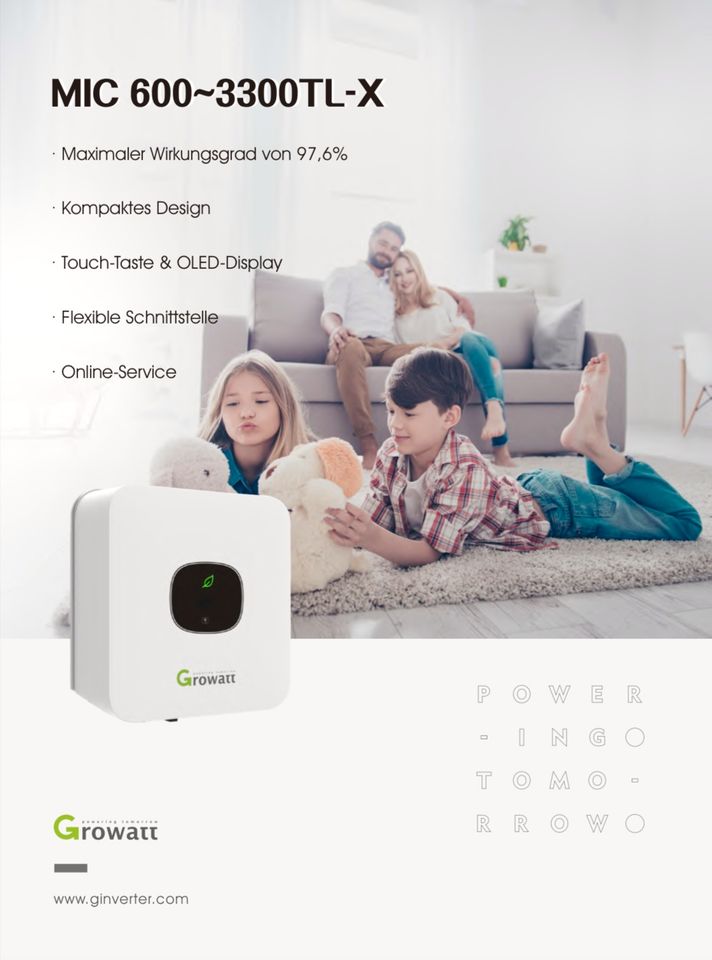

  • Growatt MIC 600~3300TL-X inverter with OLED display for efficient energy management.

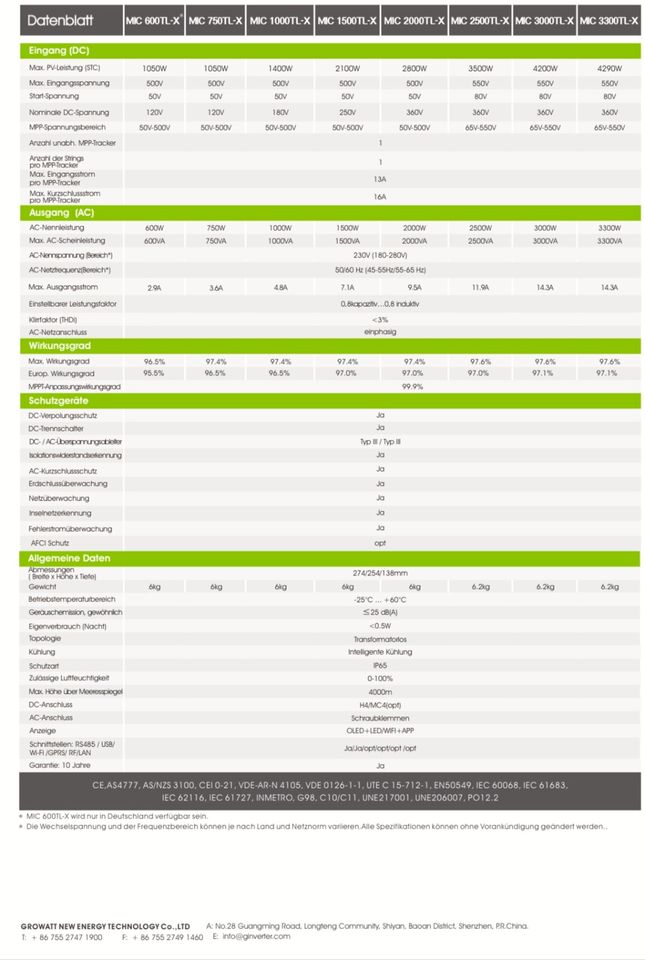

  • Datenblatt für verschiedene Wechselrichter-Modelle mit technischen Spezifikationen und Leistungsdaten.
1 9

Trina Solar (Dual Glass) / Growatt

Solar system 1820W with solar modules Trina Solar double glass + inverter

Solar system 1820W with solar modules Trina Solar double glass + inverter

€478,00 EUR
€478,00 EUR
Sale Sold out
Shipping calculated at checkout.

11 in stock

Solar system 1820W with solar modules Trina Solar double glass + inverter

The stated price (including 0% VAT)

The set consists of:

- 4x solar modules Trina Solar a 455 Watt Dualglass
- 1x Growatt inverter MIC 1500TL-X
- 2x 10m MC4 extension cable (6mm²)
- 1x Growatt WiFi stick

The solar modules:

Trina Vertex S+ "N-Type" Dual Glass 455W (black frame)

Trina Vertex S+ is the new generation of solar modules from Trina

These new-generation modules, made of double-glazed glass, utilize n-type i-TOPCon technology, capable of delivering up to 455 W maximum output power at 22.8% maximum module efficiency. In addition to the improved performance, they feature an optimized glass thickness of 1.6+1.6 mm.

The NEG9R.28 series with double glass and white back has more to offer:

Your advantages:

Longer product warranty – up to 25 years
More reliable – double glazing improves stability
More energy - 9.6% more energy production

Technical data (see data sheet):

Dimensions (H x W x D) in mm: 1762 x 1134 x 30
144 cells monocrystalline
Weight per piece in kg: approx. 21.0
Efficiency: 22.8%
Frame: black
Product warranty: 25 years
Linear performance guarantee: 30 years

Maximum power per module: 455 watts
Open circuit voltage: 53.40 volts
Max. voltage MPP: 45.00 V
Current at max. power MPP: 10.11 A
Short-circuit current: 10.77 A

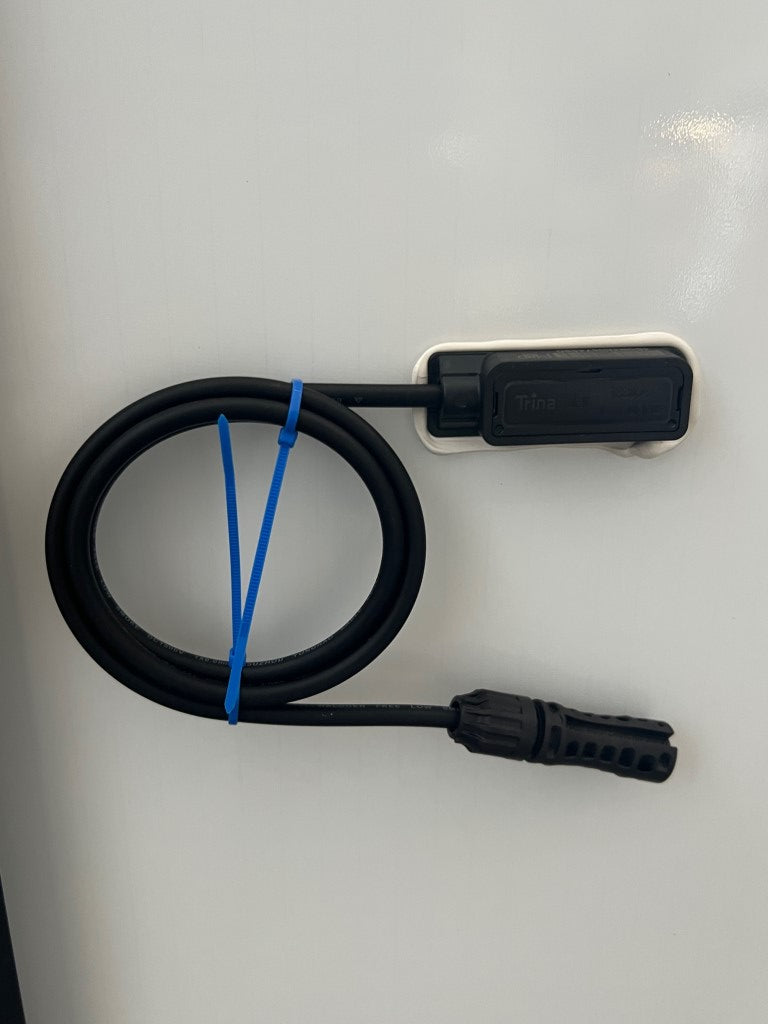

Module connector: Connection cable TS4 / MC4 EVO2
Max. system voltage: 1500 V

Please note the technical data on the data sheet!

The inverter:

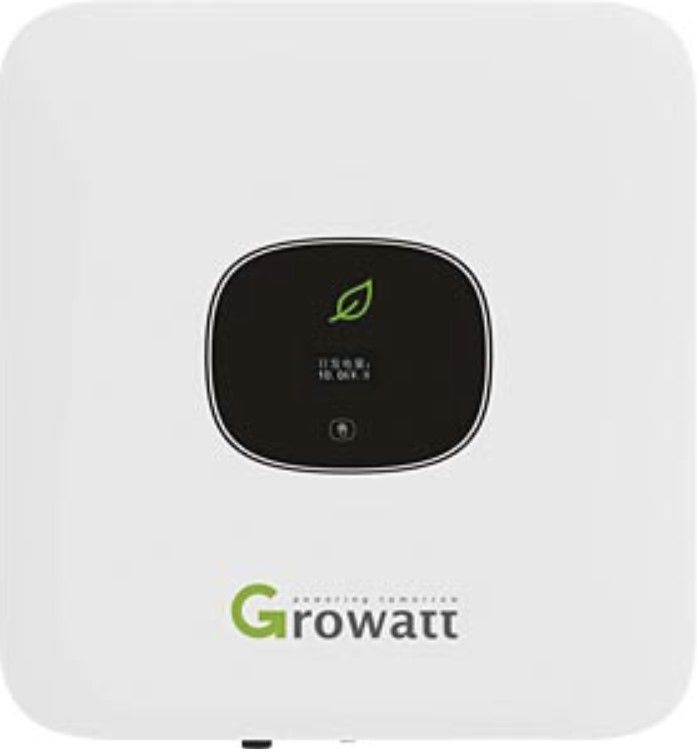

The Growatt MIC 1500TL-X is a lightweight and compact residential inverter. It features a maximum DC voltage of 500 V, a starting voltage of 50 V, and a nominal voltage of 250 V. It features an MPPT with a maximum input of 13 A. Safety is an important aspect, achieved through several features. These include a DC switch, surge protection, and an AFCI option.

The Growatt features a built-in monitoring system that allows for quick and effective monitoring of the PV system. A direct connection to the inverter is established using Wi-Fi, LAN, or a Growatt Shinelink.

Max. DC input power (watts): 2100
Number of MPPTs: 1
Display: Yes
