Trina Solar (Dual Glass) / Growatt
Solar system 2670W double glass, 6 solar modules Trina Solar a 445W + inverter
Solar system 2670W double glass, 6 solar modules Trina Solar a 445W + inverter
Low stock: 5 left
Couldn't load pickup availability
The stated price (including 0% VAT)
The set consists of:
- 6x solar module Trina Solar a 445 Watt double glass
- 1x Growatt inverter MIC 2500TL-X
- 2x 10m MC4 extension cable (6mm²)
- 1x Growatt WiFi stick
The solar modules:

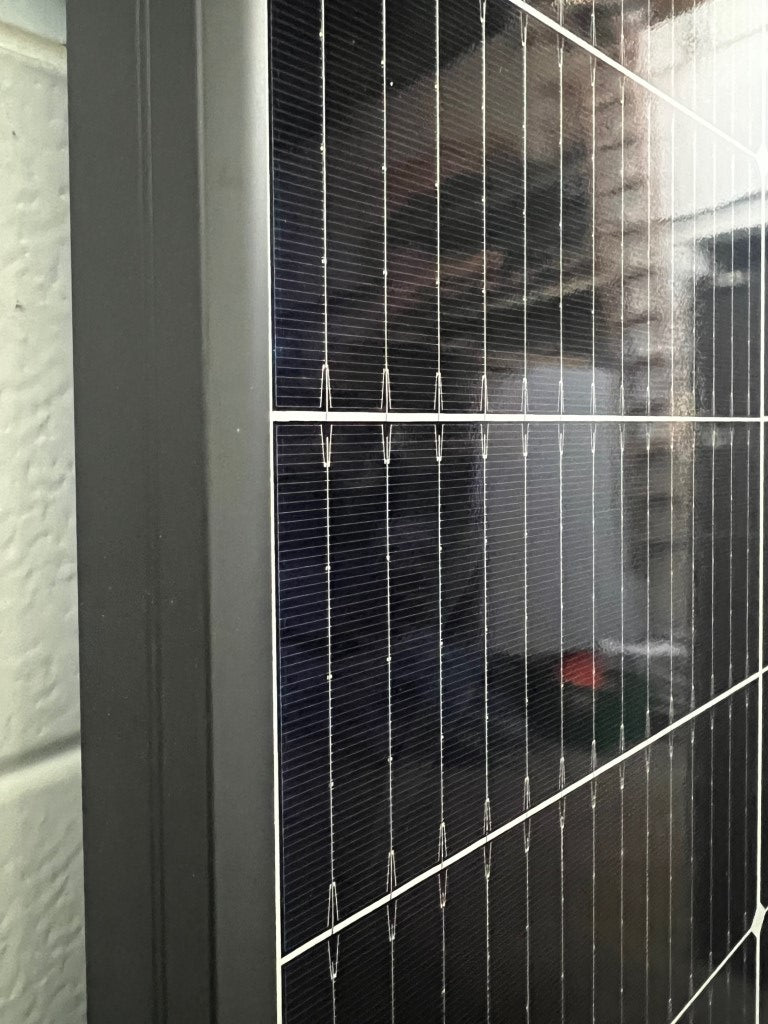

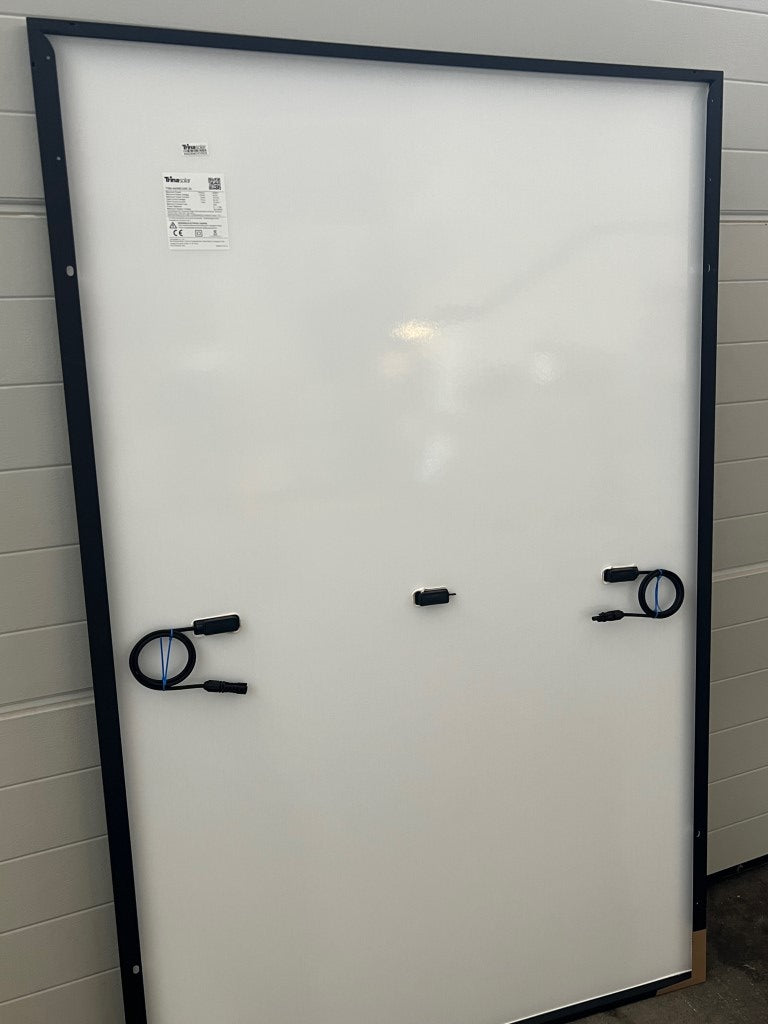

Trina Vertex S+ "N-Type" Dual Glass 445W (black frame)
Trina Vertex S+ is the new generation of solar modules from Trina
These new-generation modules, made of double-glazed glass, utilize n-type i-TOPCon technology, capable of delivering up to 450 W maximum output power at 22.5% maximum module efficiency. In addition to the improved performance, they feature an optimized glass thickness of 1.6+1.6 mm.
The NEG9R.28 series with double glass and white back has more to offer:
Technical data (see data sheet):
Efficiency: 22.0%
Frame: black
Product warranty: 25 years
Linear performance guarantee: 30 years
Maximum power per module: 445 watts
Open circuit voltage: 52.60 volts
Max. voltage MPP: 44.30 V
Current at max. power MPP: 10.09 A
Short-circuit current: 10.74 A

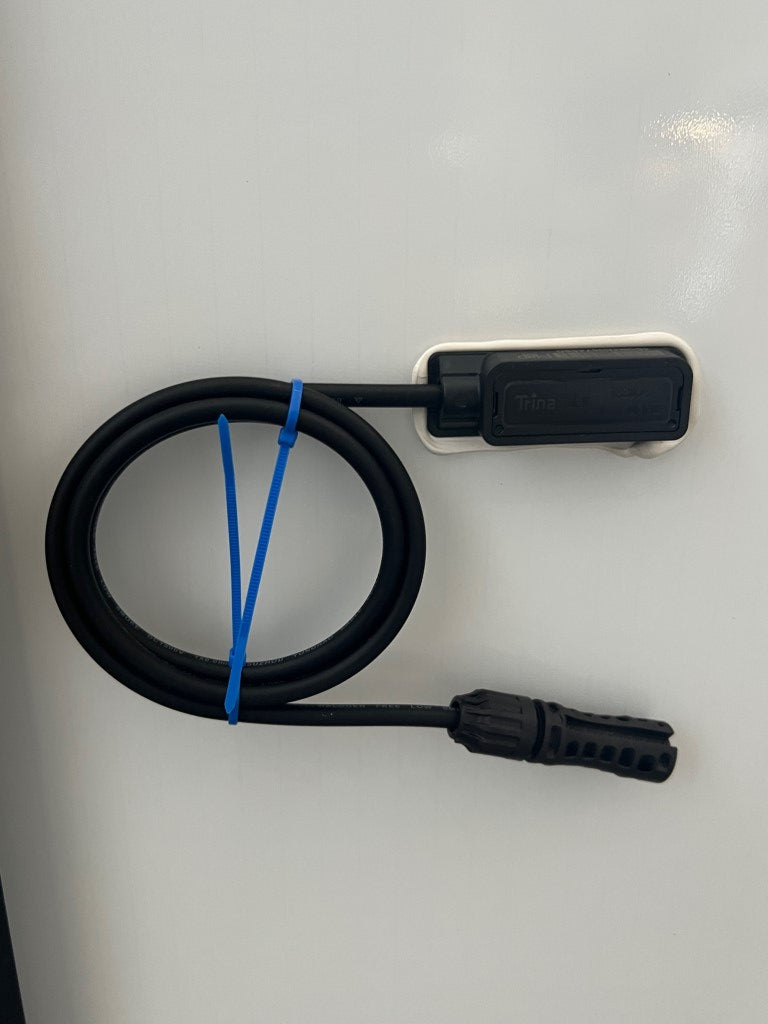

Module connector: Connection cable TS4 / MC4 EVO2
Max. system voltage: 1500 V
Please note the technical data on the data sheet!

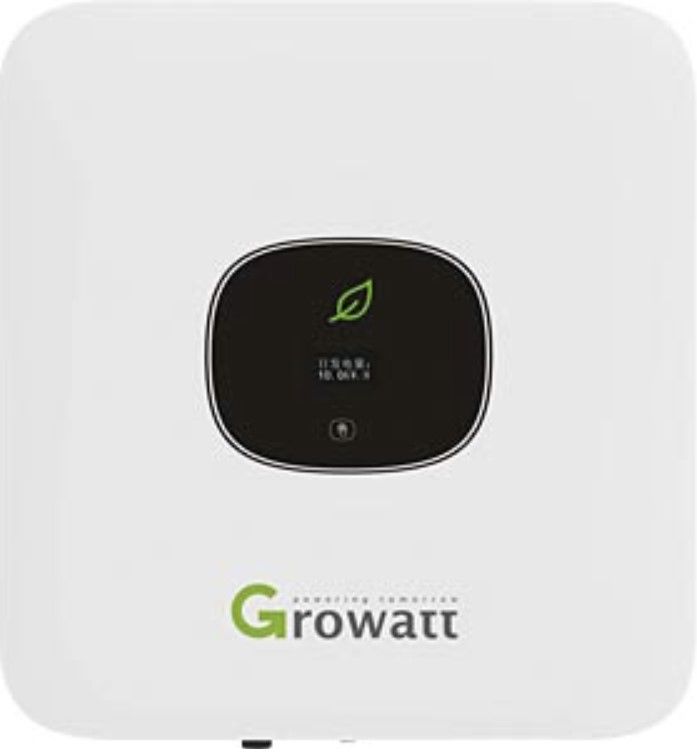

The Growatt MIC 2500TL-X is a lightweight and compact residential inverter. It features a maximum DC voltage of 550 V, a starting voltage of 80 V, and a nominal voltage of 360 V. It features an MPPT with a maximum input of 13 A. Safety is an important aspect, achieved through several features. These include a DC switch, surge protection, and an AFCI option.
The Growatt features a built-in monitoring system that allows for quick and effective monitoring of the PV system. A direct connection to the inverter is established using Wi-Fi, LAN, or a Growatt Shinelink.
Max. DC input power (watts): 3500
Number of MPPTs: 1
Display: Yes
