SOLAR SYSTEM 3520W double glass bifacial Trina Solar, Growatt
SOLAR SYSTEM 3520W double glass bifacial Trina Solar, Growatt
11 in stock
Couldn't load pickup availability
SOLAR SYSTEM 3520W double glass bifacial Trina Solar, Growatt
The stated price (including 0% VAT)
The set consists of:
- 8x solar module Trina Solar a 440 Watt double glass (Clear Black, bifacial),
- 1x Growatt inverter, type: MIC 3300TL-X
- 1x Growatt WiFi stick
-
2x solar extension cables (6mm²) of 10 meters each

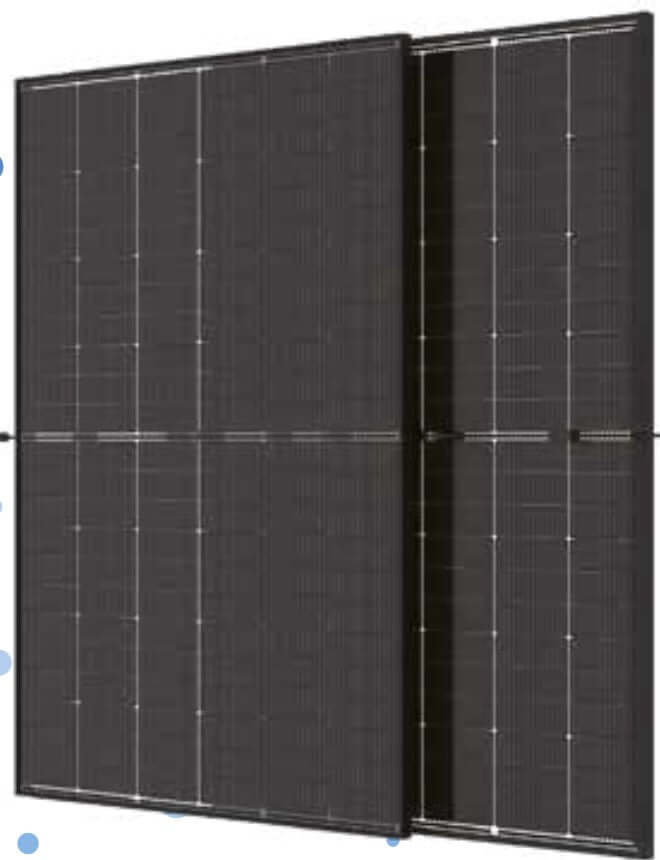

The solar modules:
Trina Solar Type: TSM-440-NEG9RC.27
The Trina Solar NEG9RC.27 Vertex S+ is a high-performance solar module for residential and commercial rooftop systems. It features N-type i-TOPCon monocrystalline cell technology and is characterized by its enhanced product performance and attractive design.
The module offers a peak power of up to 440 W and a module efficiency of 22.0% thanks to its high-density cell interconnection technology. N-type technology ensures low degradation of only 1% in the first year and 0.4% in years 2-30, ensuring long-term performance reliability.
The Trina Solar NEG9RC.27 Vertex S+ module is highly reliable and robust. It has been tested and meets a snow load of 5.4 kPa and a wind load of 4 kPa, making it ideal for a variety of weather conditions.
The module features a double-glazed design that enhances durability, fire resistance, performance, and recyclability. The front panel is made of 1.6 mm thick, highly transparent, anti-reflective, heat-treated glass. The back panel is also made of heat-treated glass with a white print. The sturdy anodized black aluminum frame ensures a stable structure and easy installation.
Trina Solar provides a 25-year product warranty and a 30-year linear performance warranty

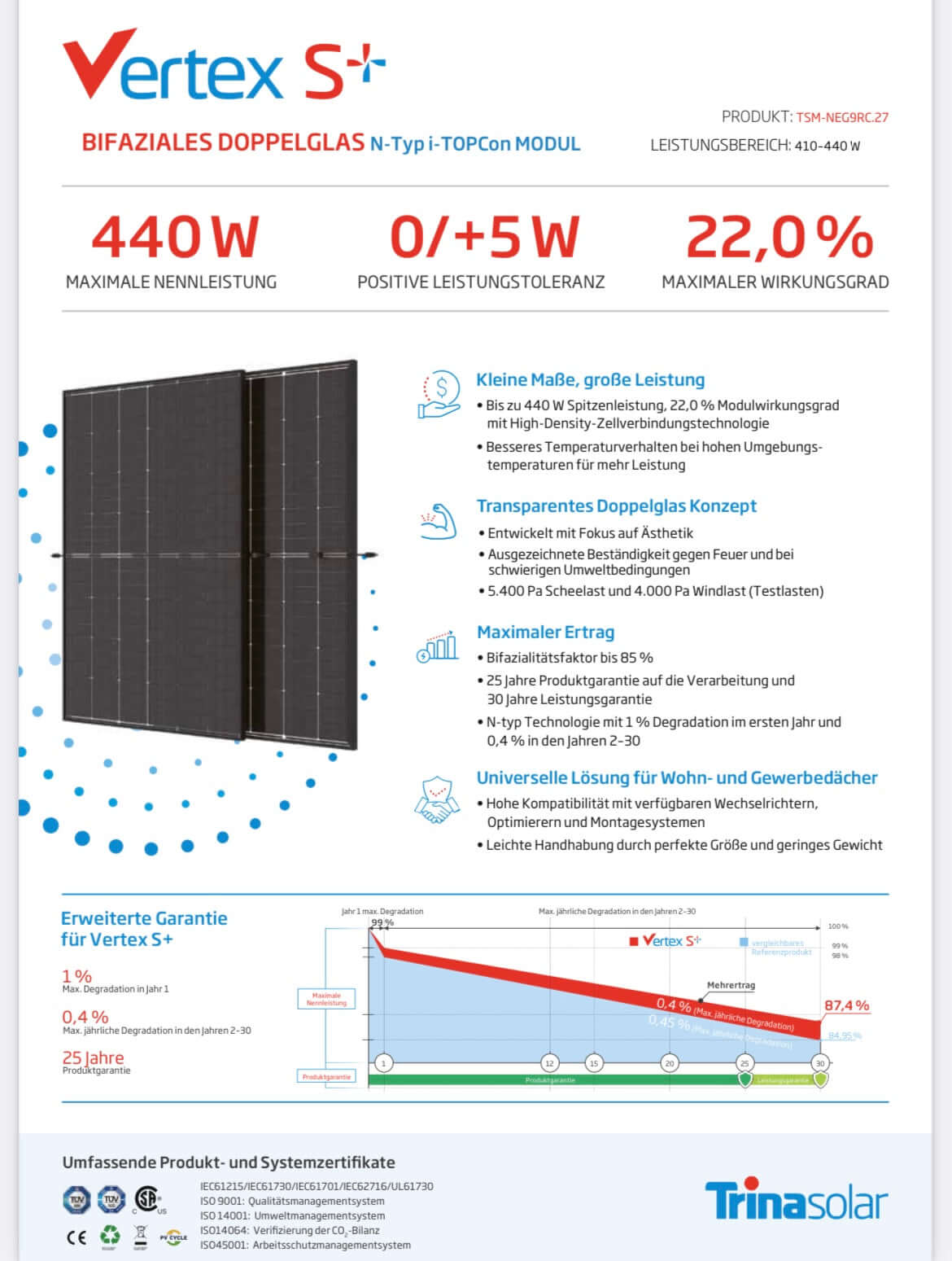

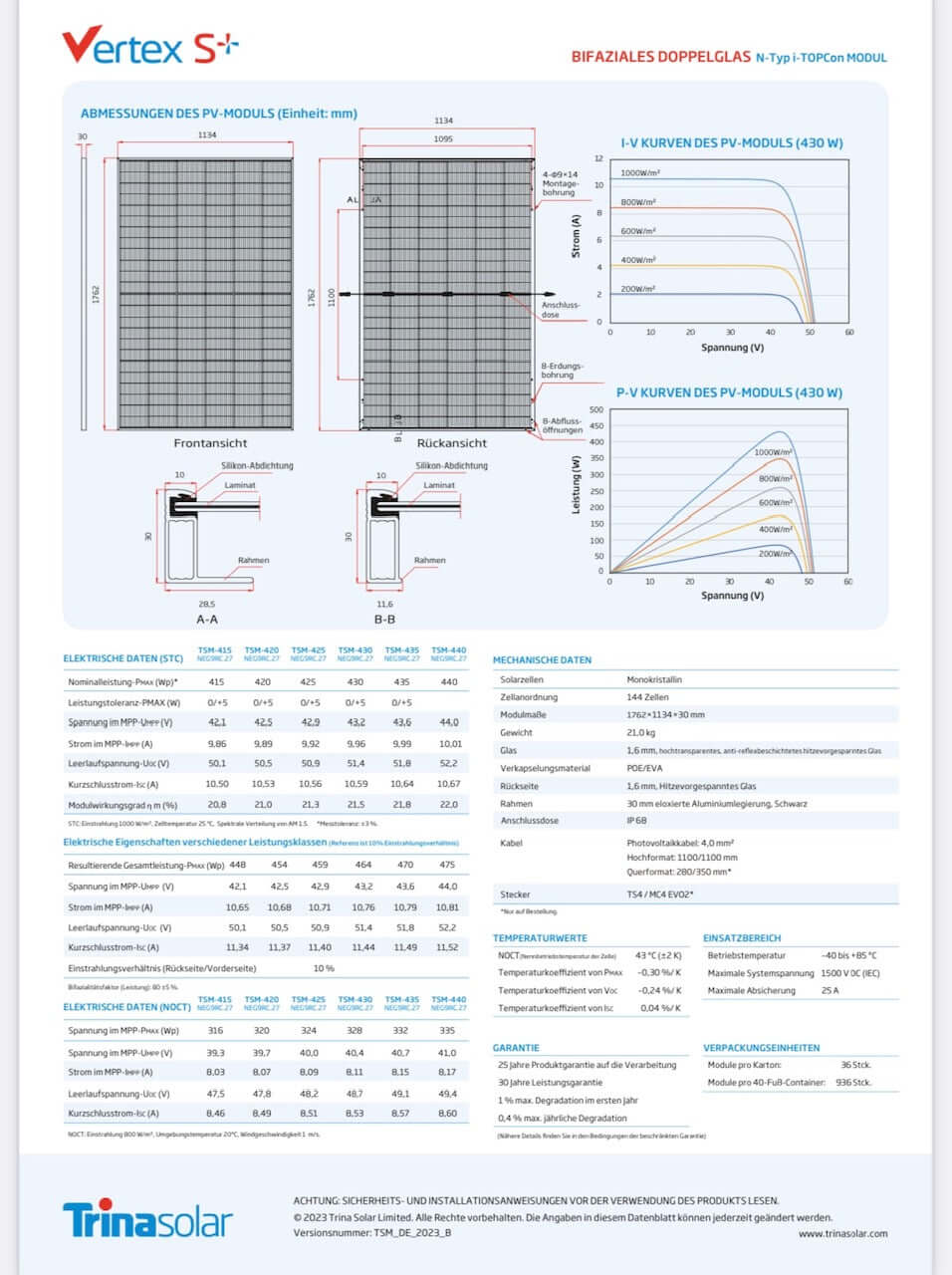

Technical data (see data sheet):
Type: TSM-440-NEG9RC.27-MC4EVO2 (Claer Black)
Dimensions (H x W x D) in mm: 1762 x 1134 x 30
Weight per piece in kg: approx. 21.0
Efficiency: 22.0%
Frame: black
Product warranty: 25 years
Linear performance guarantee: 30 years
Maximum power per module: 440 watts
Open circuit voltage: 52.20 volts
Max. voltage MPP: 44.00 V
Current at max. power MPP: 10.01 A
Short-circuit current: 10.67 A
Module connector: Connection cable TS4 / MC4 EVO2
Max. system voltage: 1500 V
Please note the technical data on the data sheet!

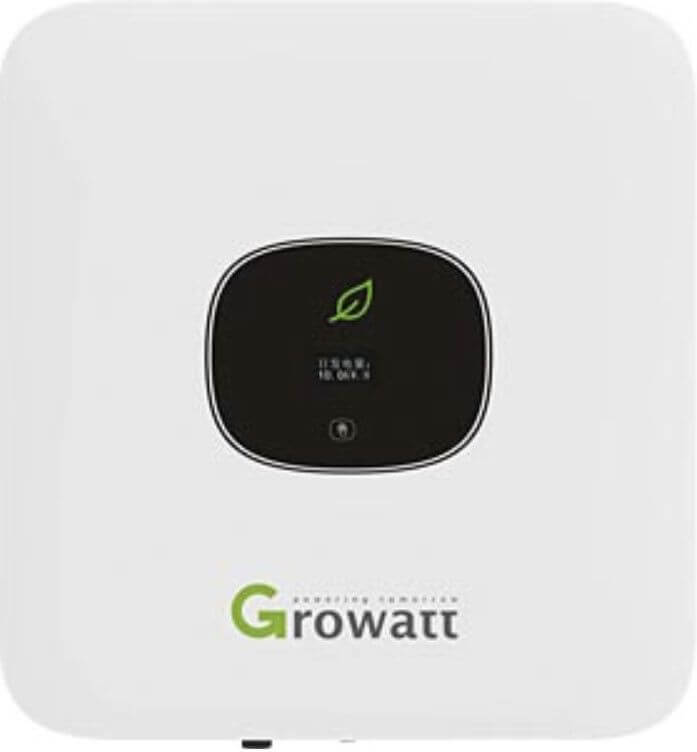

The inverter:
GROWATT MIC 3300TL-X
This small and compact inverter with high performance makes solar energy accessible to everyone. The Growatt 3300X ensures professional operation for small to medium-sized photovoltaic systems. Quick installation and versatile application possibilities make the Growatt inverter ideal for indoor applications. The inverter is suitable for all types of solar modules.
In addition, the new Growatt MIC series features an OLED touch display for easy operation of the device.

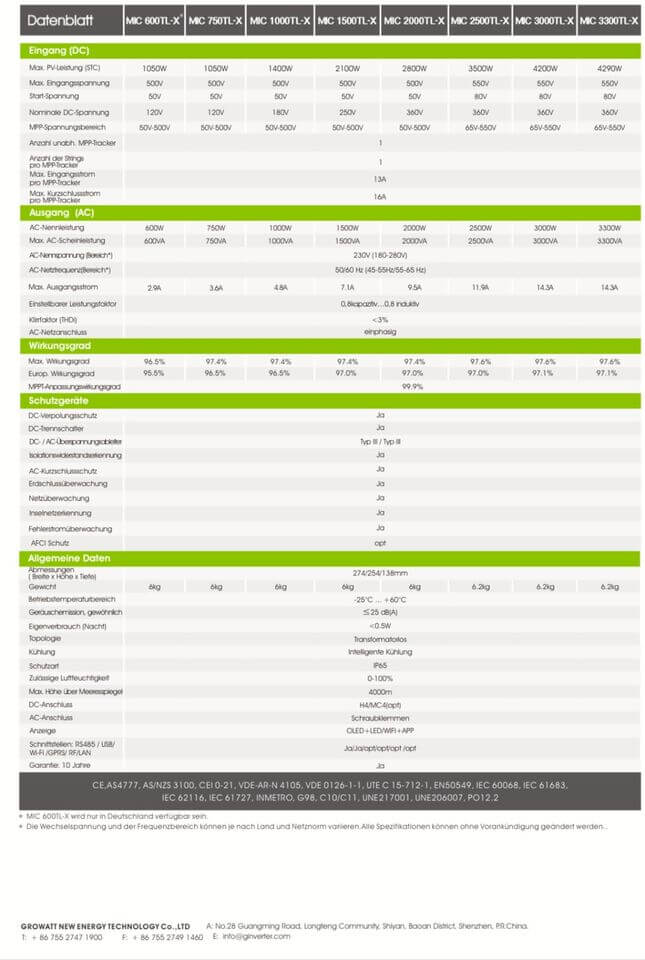

Technical data:
Interface: RS485/ USB
Max. input current: 13A
Max. DC power: see data sheet
Max. efficiency: see data sheet
Number of phases: 1
Dimensions (W x H x D) in mm: 274 x 254 x 138
DC reverse polarity protection: yes
Short-circuit resistance: yes
Output overvoltage protection varistor: yes
Earth fault monitoring: yes
Network monitoring: yes
AC/DC sensitive residual current monitoring unit: yes
System configuration: Grid coupling
Operating temperature: -25°C - +60°C
Charging mode: MPPT (Maximum Power Point Tracking)
Transformerless: yes
Current type: Input: DC / Output: AC
Protection class: IP65
Weight: 6 kg
10-year manufacturer's warranty
For further technical data, please refer to the enclosed data sheet.
Manufacturer information for Trina Vertex S TSM-NEG9RC.27 can be found here .
Manufacturer information for Growatt MIC1500 can be found here .
