SOLAR SYSTEM 4500W Trina Solar double glass and Growatt inverter

SOLAR SYSTEM 4500W Trina Solar double glass and Growatt inverter

The stated price (including 0% VAT)

The set consists of:

• 10x double glass solar module Trina Solar each 450 Watt
• 1x Growatt inverter (3-phase) MOD 4000TL3-XH (BP)
• 1x WiFi stick
• 1x 50m solar cable (6mm²)
• 4 pairs of Stäubli MC4 plug/socket

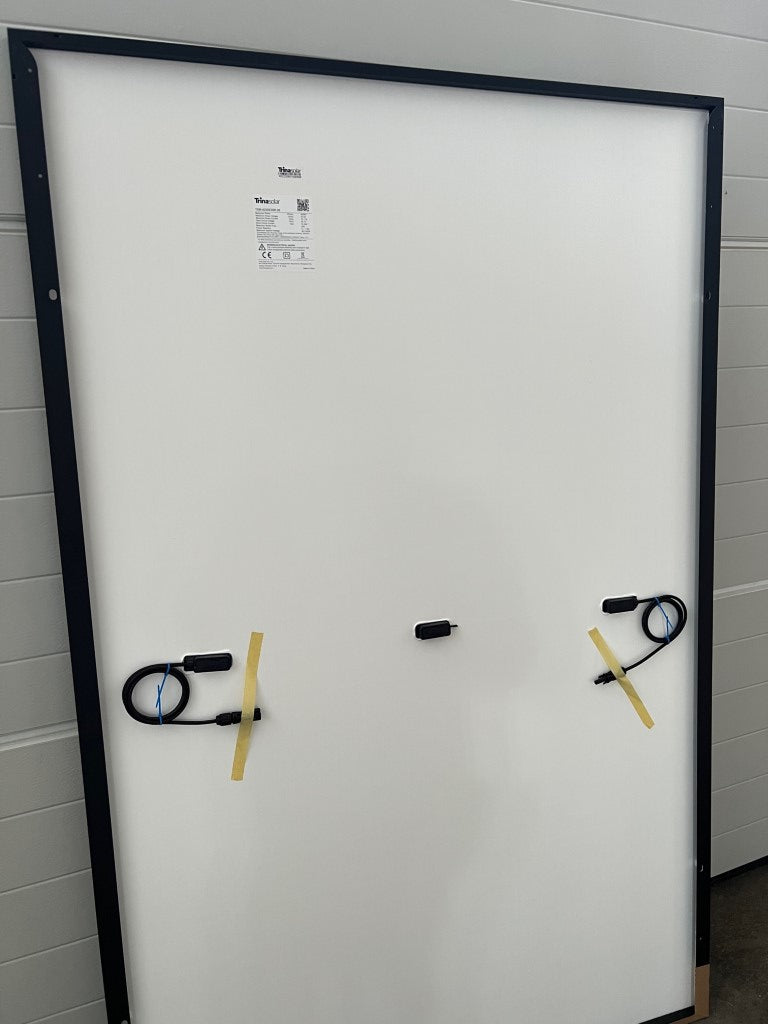

The solar modules:

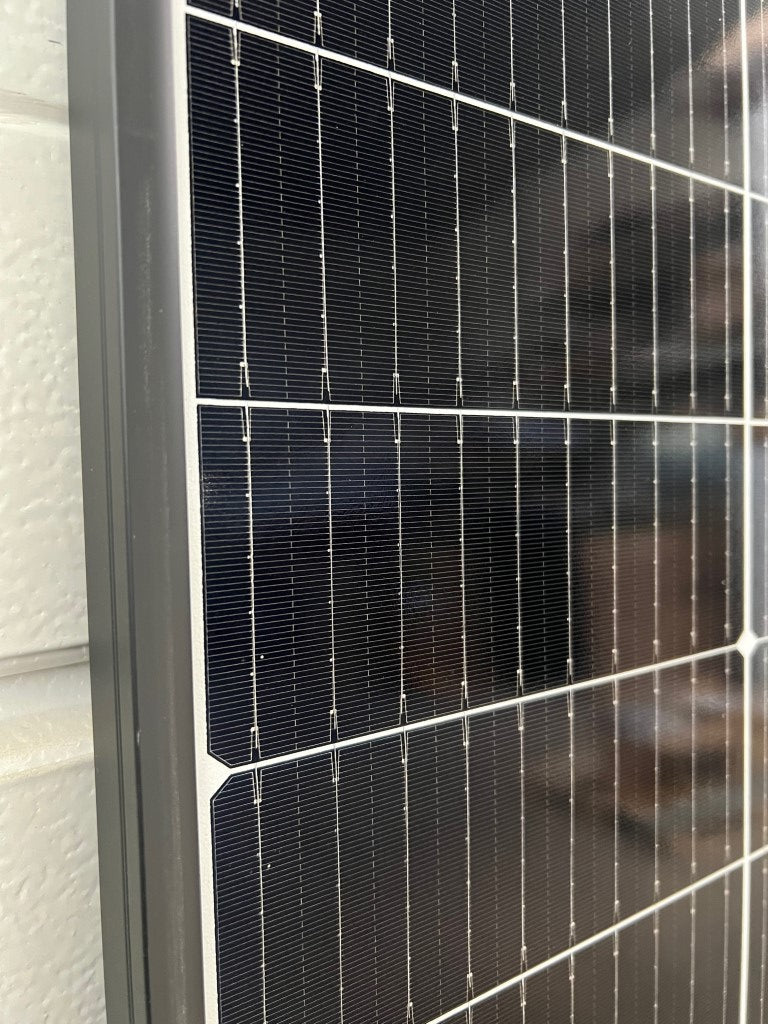

Trina Solar Vertex S+ is the new generation solar modules from Trina

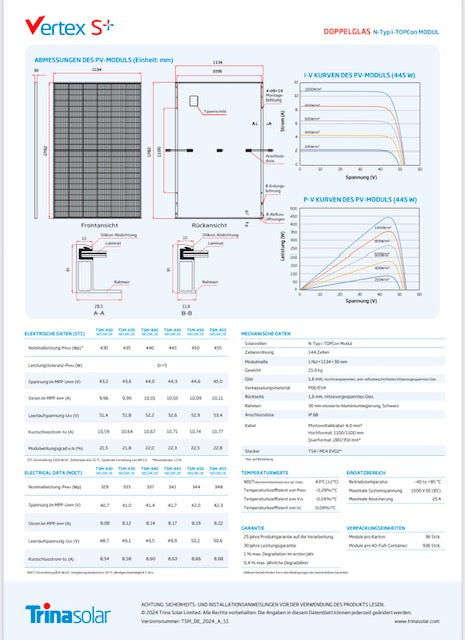

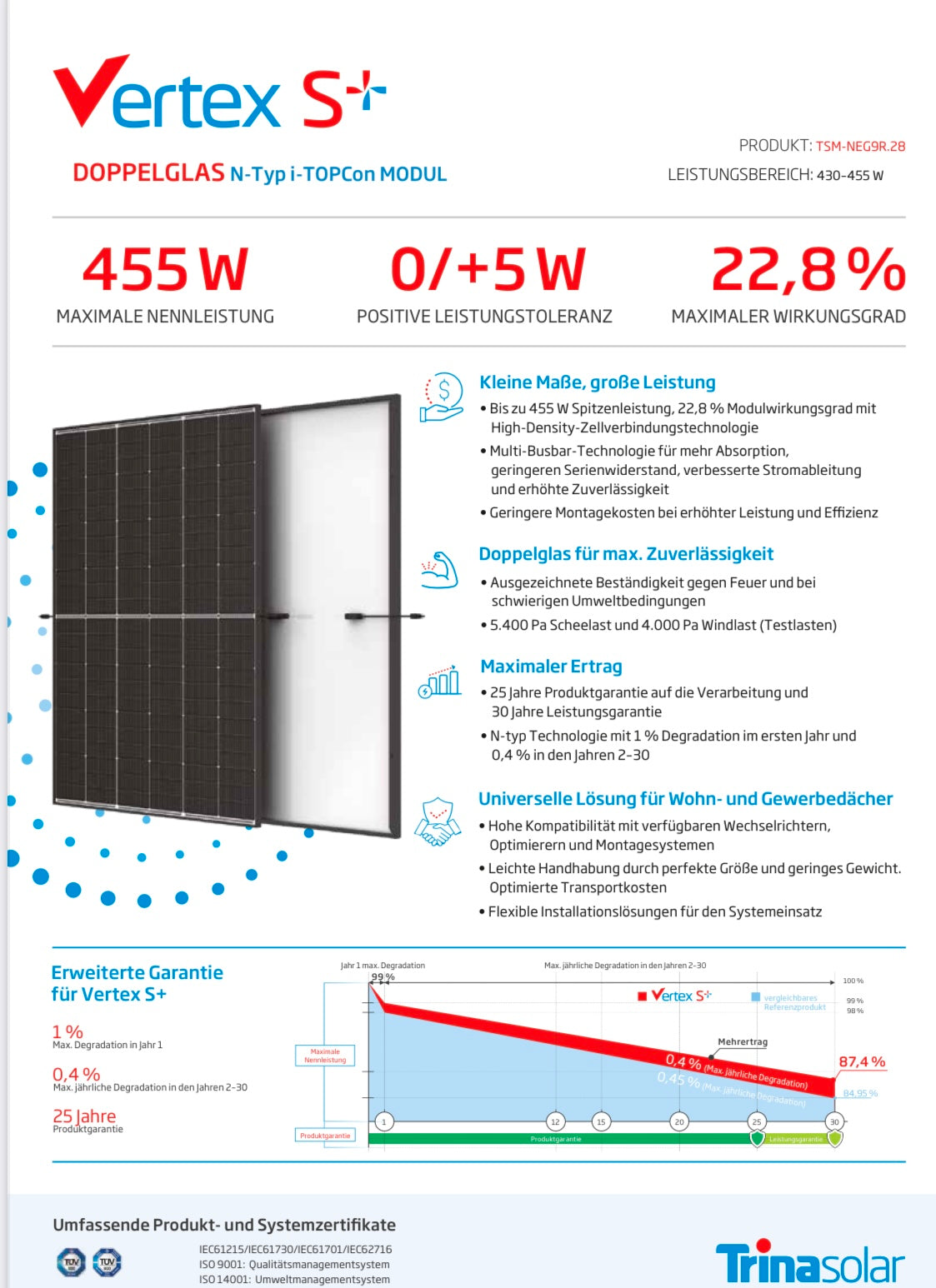

Technical data (see data sheet):

Dimensions (H x W x D) in mm: 1762 x 1134 x 30

Weight per piece in kg: approx. 21.0
Efficiency: 22.5%
Frame: black
Product warranty: 25 years
Linear performance guarantee: 30 years

Type: TSM-445NEG9R.28
Maximum power per module: 450 watts
Open circuit voltage: 52.90 volts
Max. voltage MPP: 44.60 V
Current at max. power MPP: 10.09 A
Short-circuit current: 10.74 A

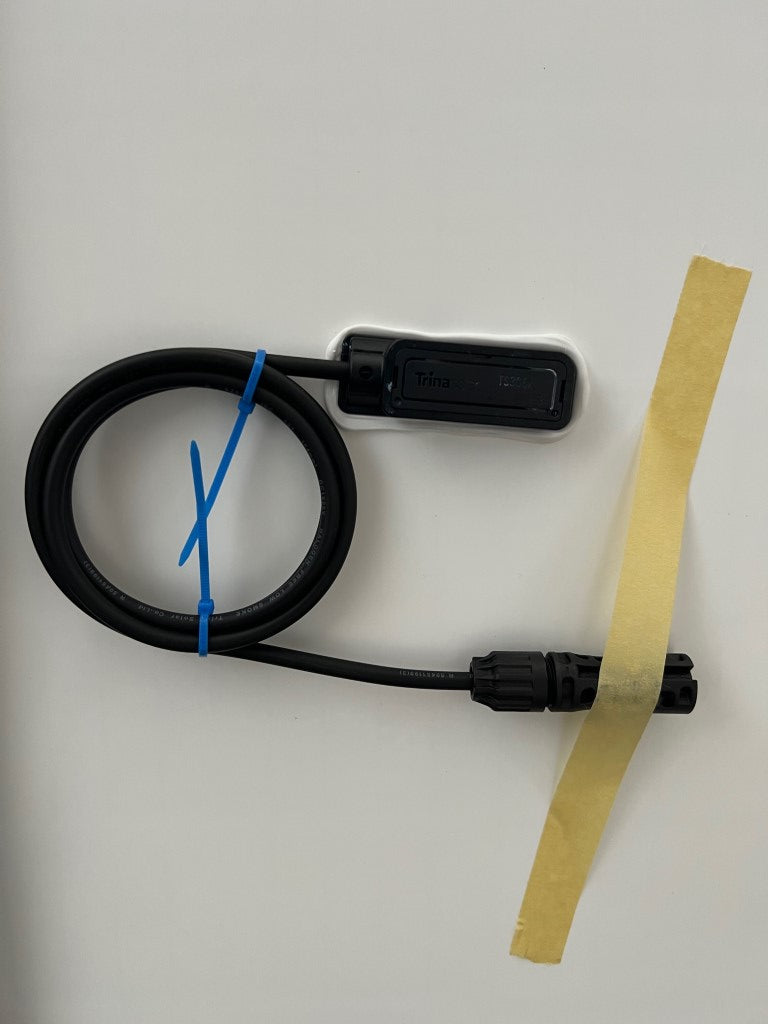

Module connector: Connection cable TS4 / MC4 EVO2
Max. system voltage: 1500 V

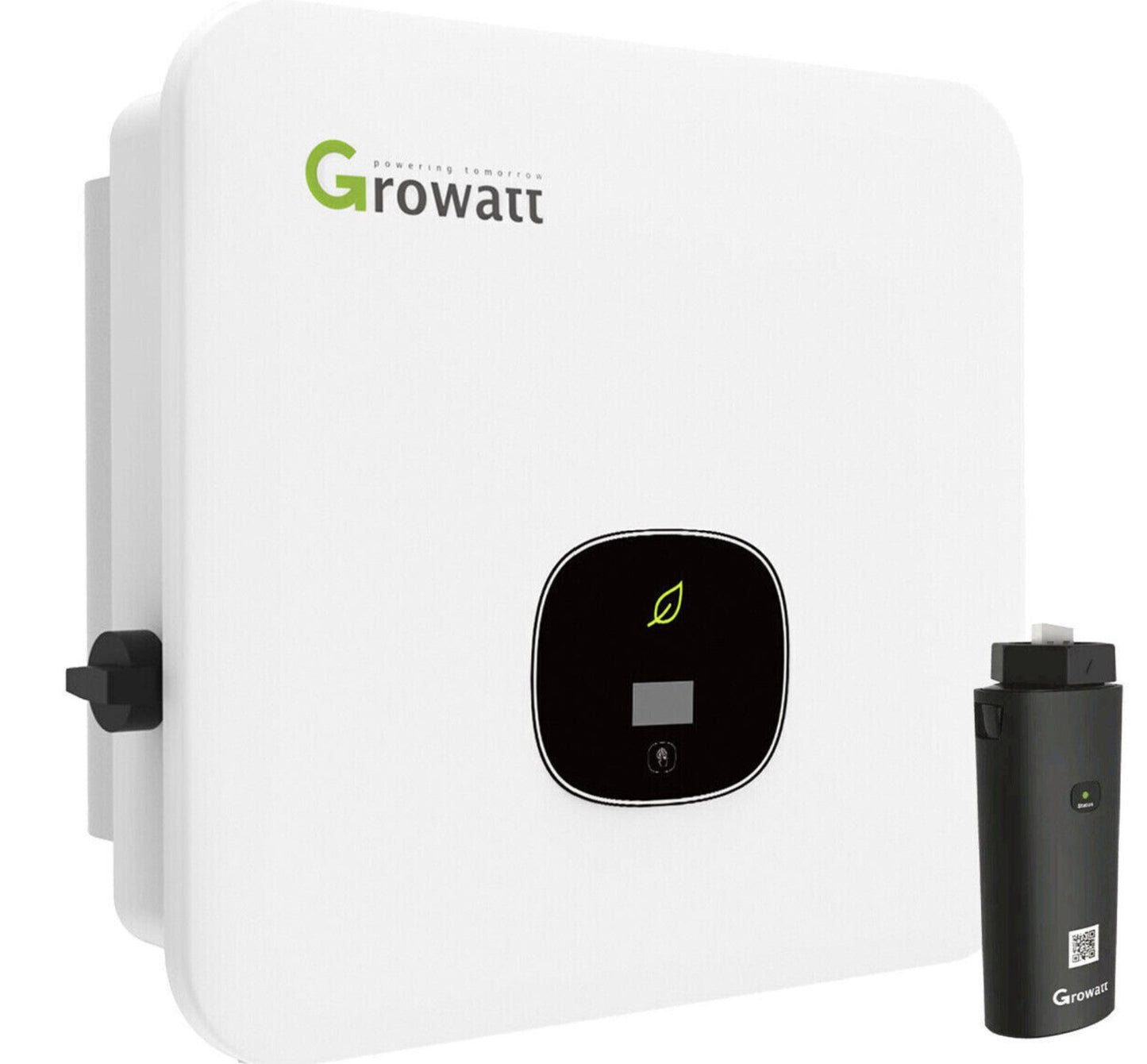

The inverter:

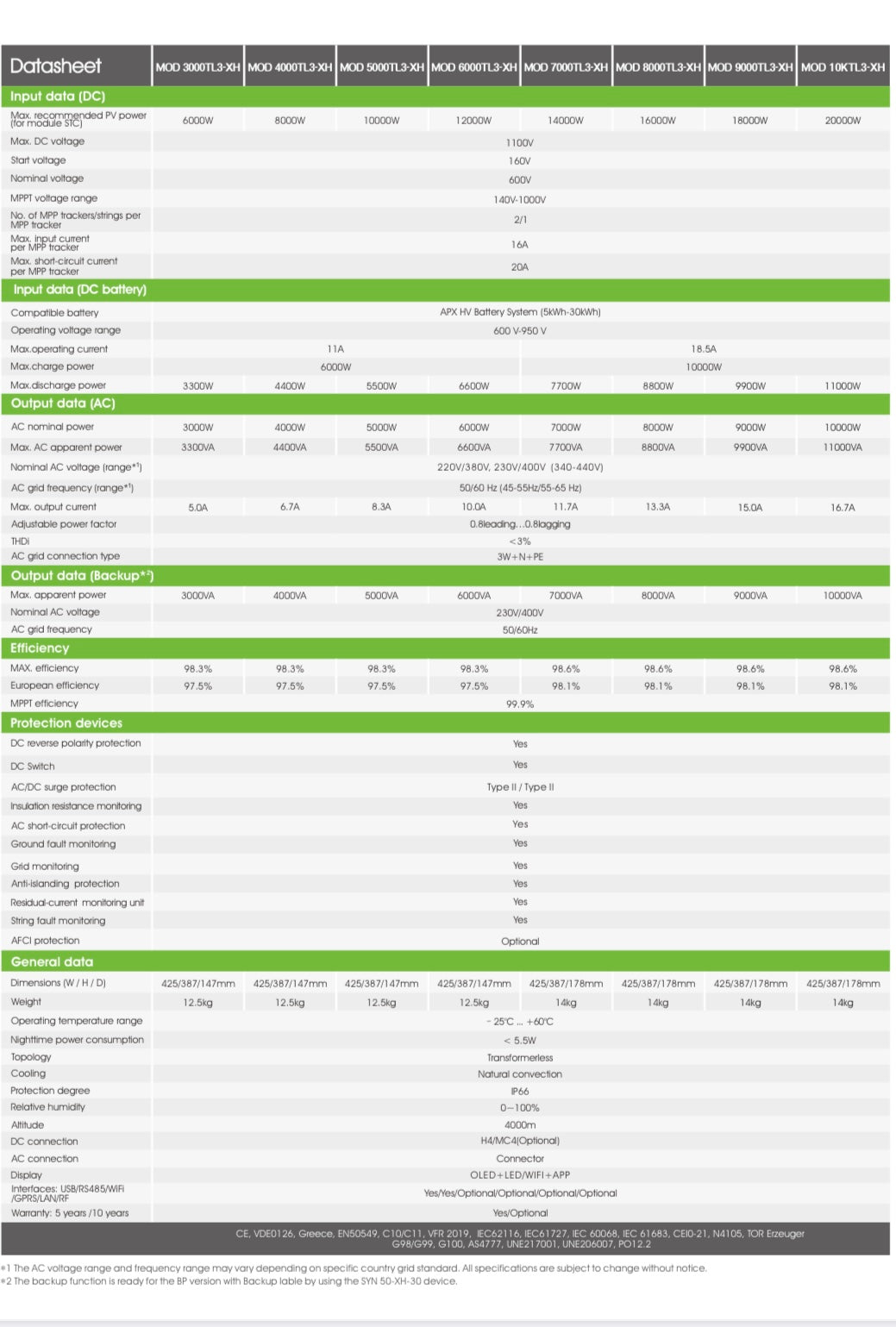

Growatt MOD 4000TL3-XH(BP)

• Battery-compatible, future-proof

• Two MPP trackers

• Type II SPD on DC and AC side

• AFCI function optional

• 24h self-consumption monitoring

The Growatt MOD 4000TL3-XH is a three-phase string inverter suitable for larger residential and commercial solar systems. As a hybrid inverter, it is also suitable for connecting a battery system and storing generated energy for times of need.

High efficiency: The MOD 4000TL3-XH has a maximum efficiency of 98.4%. This percentage is the portion of the direct current generated by the solar panels that can actually be used as alternating current for your home or business.

Dual MPPT: The MOD 4000TL3-XH inverter features two MPPT (Maximum Power Point Tracking) inputs, allowing you to optimize the performance of two different solar panels, even if they are facing in different directions or have different shading patterns.

Flexibility: The MOD 4000TL3-XH inverter is suitable for use in both residential and commercial environments and is compatible with a wide range of solar module types and configurations.

Robustness: The MOD 4000TL3-XH inverter features a robust aluminum alloy housing that is corrosion-resistant and suitable for harsh environmental conditions.

Monitoring: The Growatt MOD 4000TL3-XH inverter comes with a built-in WiFi module that allows the user to monitor the performance of the solar panels in real time from a smartphone or tablet.

Fault Detection: The MOD 4000TL3-XH features built-in string fault detection that easily identifies problems with the solar panels or wiring and notifies the user.

Active power limitation: The MOD 4000TL3-XH inverter features active power limitation to prevent the system from exceeding the maximum permissible power.

Back Up (BP) function
