Trina Solar (Dual Glass) / Growatt
Solar system 5.5 KWp, Trina Solar 460W + Growatt hybrid inverter
Solar system 5.5 KWp, Trina Solar 460W + Growatt hybrid inverter
11 in stock
Couldn't load pickup availability
Solar system 5.5 KWp, Trina Solar 460W + Growatt hybrid inverter
*Price including 0% VAT for those entitled according to Section 12 Paragraph 3 UStG

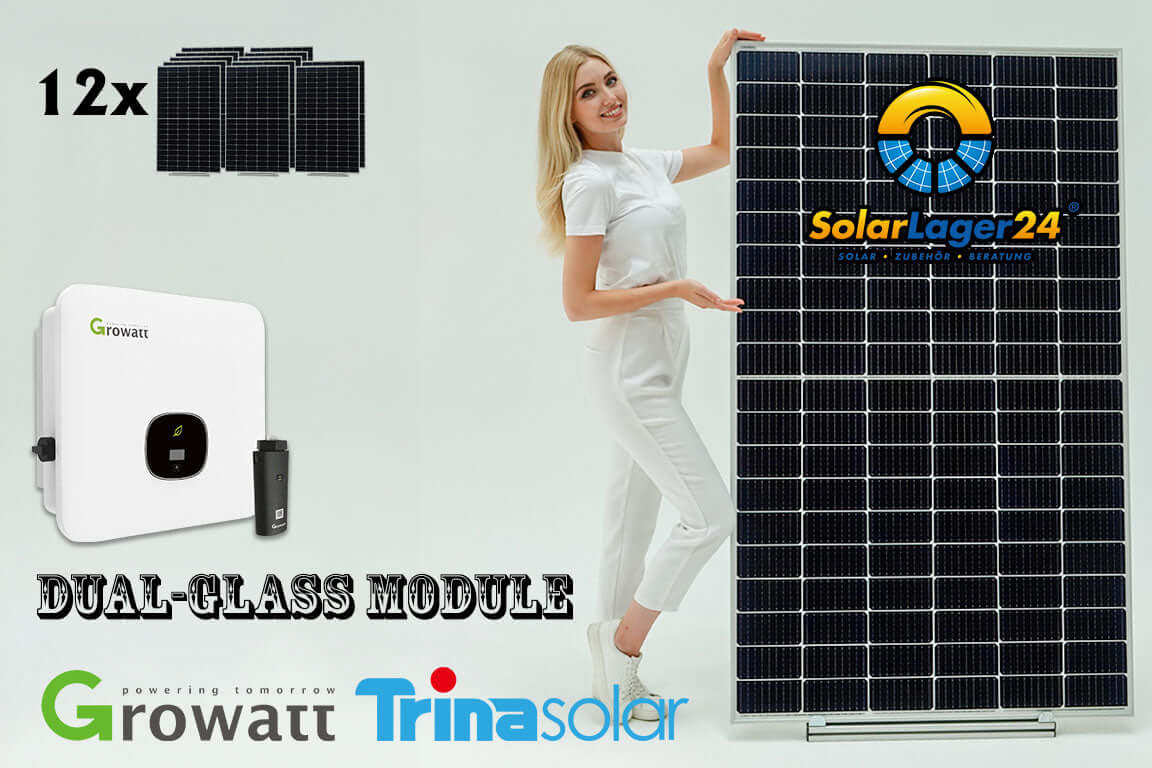

The set consists of:
- 12x solar module Trina Solar a 460 Watt double glass
- 1x Growatt inverter MOD 5000TL3-XH (BP), 3-phase
- 1x 100m solar cable (6mm²)
- 4 pairs of Stäubli MC4 plug/socket
- 1x WiFi stick

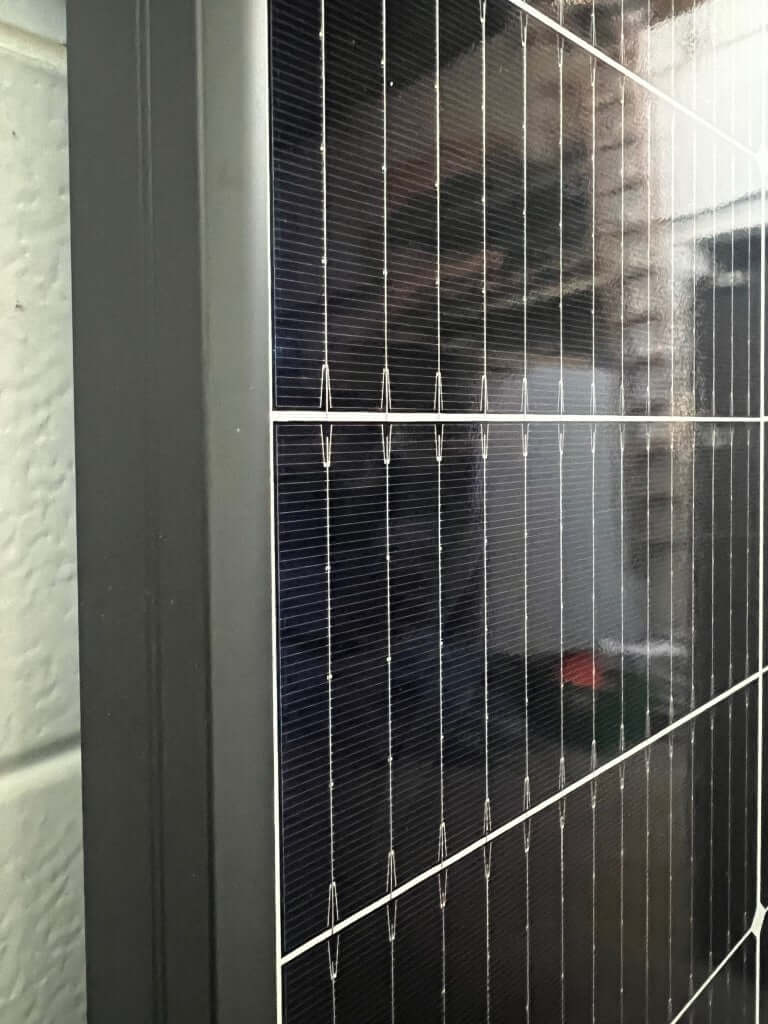

Trina Solar Vertex S+ is the new generation solar modules from Trina
These next-generation modules, constructed from double-glazed glass, utilize n-type i-TOPCon technology , capable of delivering up to 460 W maximum output power at 23.0% maximum module efficiency. In addition to the improved performance, they feature an optimized glass thickness of 1.6+1.6 mm.
The Trina NEG9R.28 series with double glass and white back has more to offer:
- Longer product warranty – up to 25 years
- More reliable – double glazing improves stability
- More energy - 9.6% more energy production
Technical data (see data sheet):
TSM-460NEG9R.28
Dimensions (H x W x D) in mm: 1762 x 1134 x 30
Weight per piece in kg: approx. 21.0
Efficiency: 23.0%
Frame: black
Product warranty: 25 years
Linear performance guarantee: 30 years
Maximum power per module: 460 watts
Open circuit voltage: 53.80 volts
Max. voltage MPP: 45.40 V
Current at max. power MPP: 10.14 A
Short-circuit current: 10.81 A

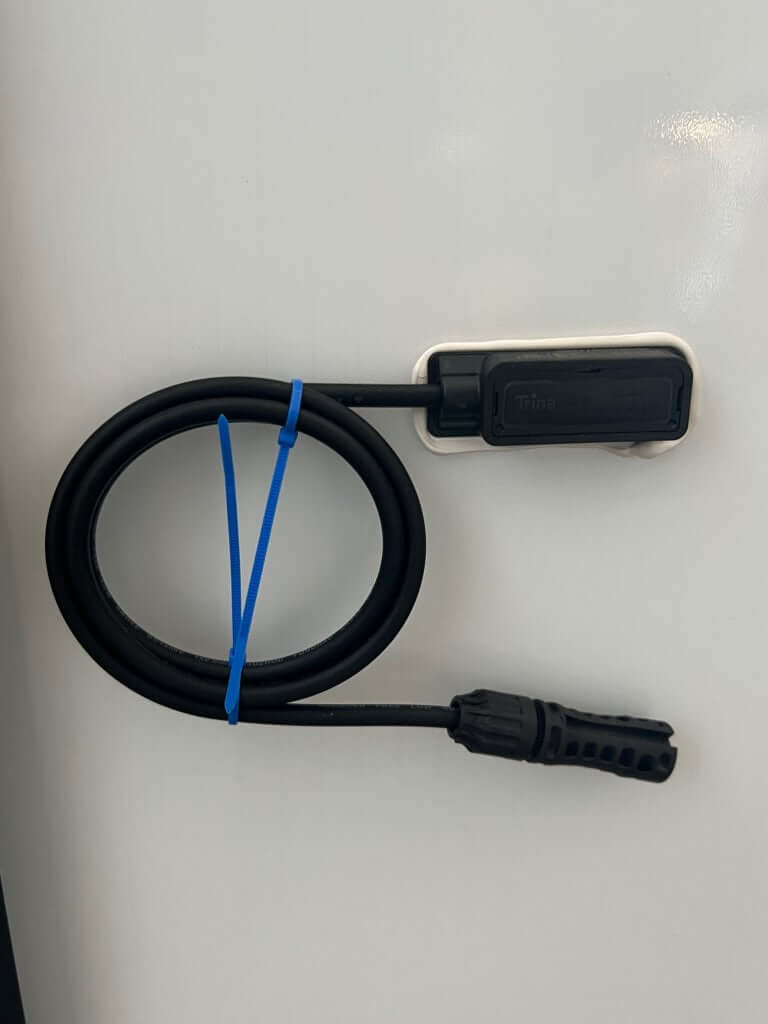

Module connector: Connection cable TS4 / MC4 EVO2
Max. system voltage: 1500 V
Please note the technical data on the data sheet!
The inverter:
Growatt MOD 5000TL3-XH (BP)
The Growatt MOD 5000TL3-XH is a three-phase string inverter suitable for larger residential and commercial solar systems. As a hybrid inverter, it is also suitable for connecting a battery system and storing generated energy for times of need.
High efficiency : The MOD 5000TL3-XH has a maximum efficiency of 98.4%. This percentage is the portion of the direct current generated by the solar panels that can actually be used as alternating current for your home or business.
Dual MPPT : The MOD 5000TL3-XH inverter features two MPPT (Maximum Power Point Tracking) inputs, allowing you to optimize the performance of two different solar panels, even if they are facing in different directions or have different shading patterns.
Flexibility : The MOD 5000TL3-XH inverter is suitable for use in both residential and commercial environments and is compatible with a wide range of solar module types and configurations.
Robustness : The MOD 5000TL3-XH inverter features a robust aluminum alloy housing that is corrosion-resistant and suitable for harsh environmental conditions.
Monitoring : The Growatt MOD 5000TL3-XH inverter comes with a built-in WiFi module that allows the user to monitor the performance of the solar panels in real time from a smartphone or tablet.
Fault Detection : The MOD 5000TL3-XH features built-in string fault detection that easily identifies problems with the solar panels or wiring and notifies the user.
Active power limitation : The MOD 5000TL3-XH inverter has an active power limitation that prevents the system from exceeding the maximum permissible power.
